mart609 · Post by **mart609** » Thu Apr 12, 2012 5:05 pm

Been thinking of de-wipering the rear of the lude for a while. But I lost the bung I bought for it. Well while stripping the tracklude I came across the bung in the glovebox

It's pretty easy but thought I'd just do a write-up on it anyway.

You will need one of these. A Bung

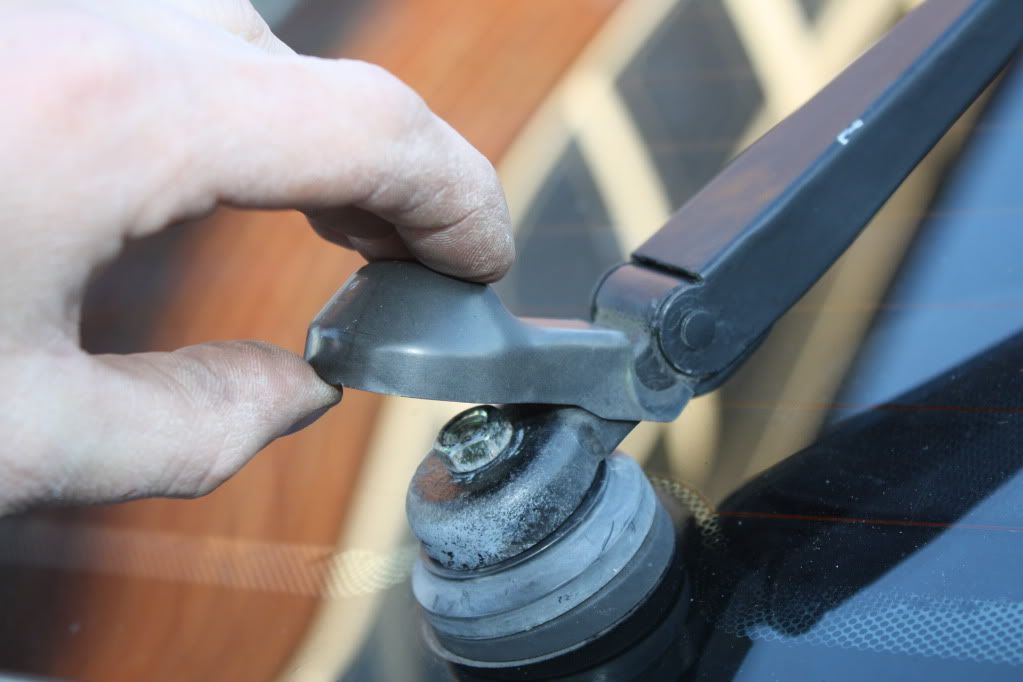

Firstly, remove the cap covering the nut by lifting from the back so you unhook it. It might be a bit stiff so may need to use a screwdriver or something to prize it loose.

This reveals the nut (12mm i think) Remove

This releases the wiper arm so remove that. and you are left like this

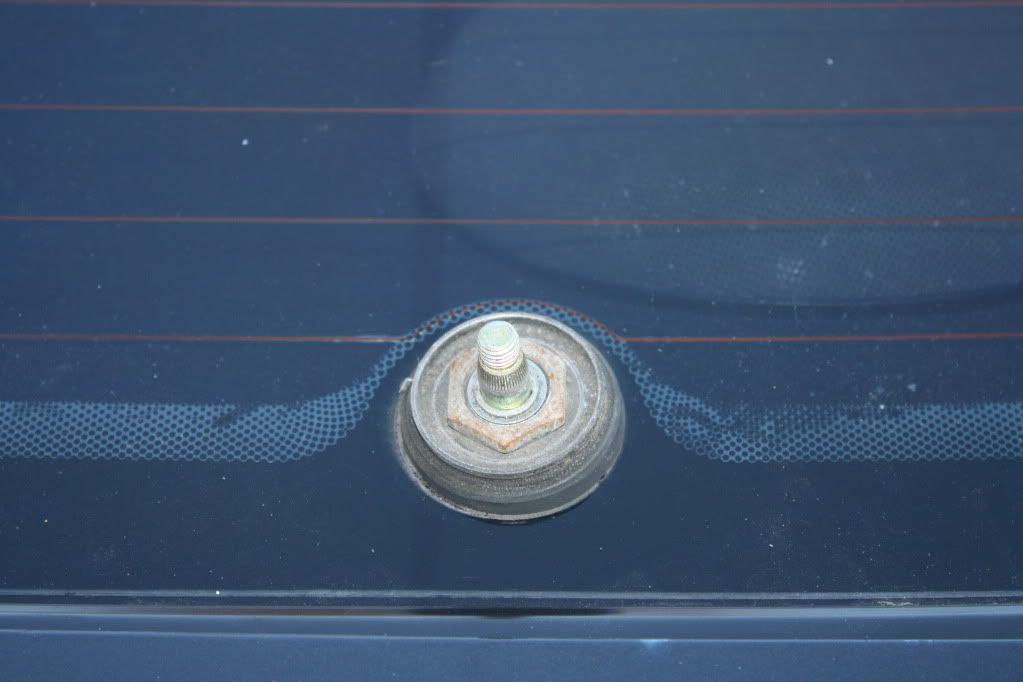

Remove the rubber cover to reveal the 23mm nut and remove that too.

Then open the boot and locate the motor underneath. Disconnect the plug

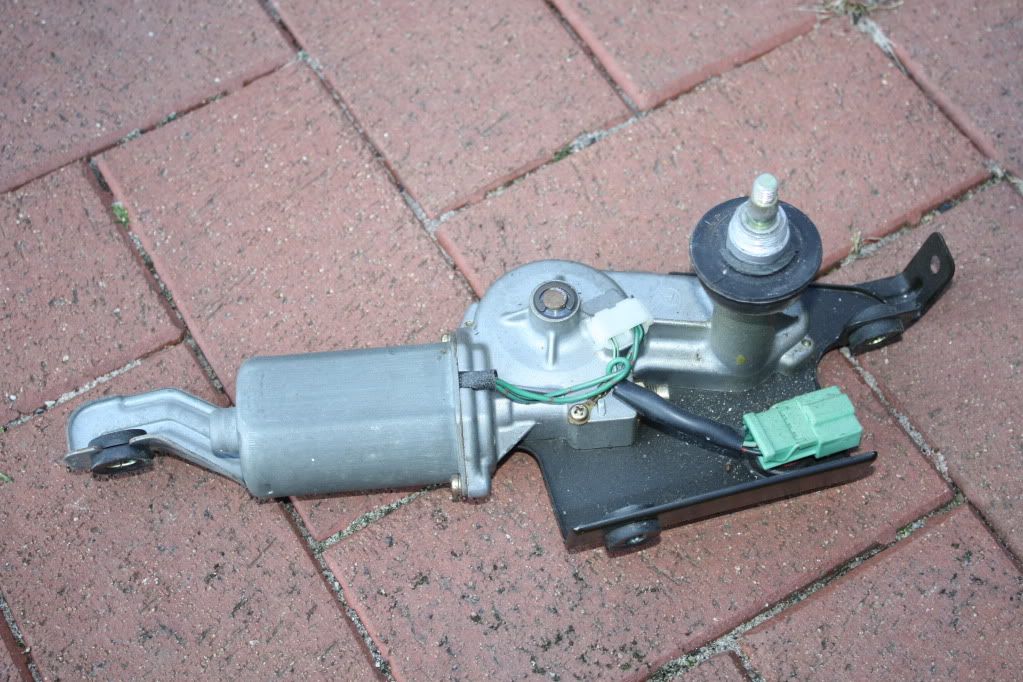

Then remove the Three 10mm bolts and the motor will come away

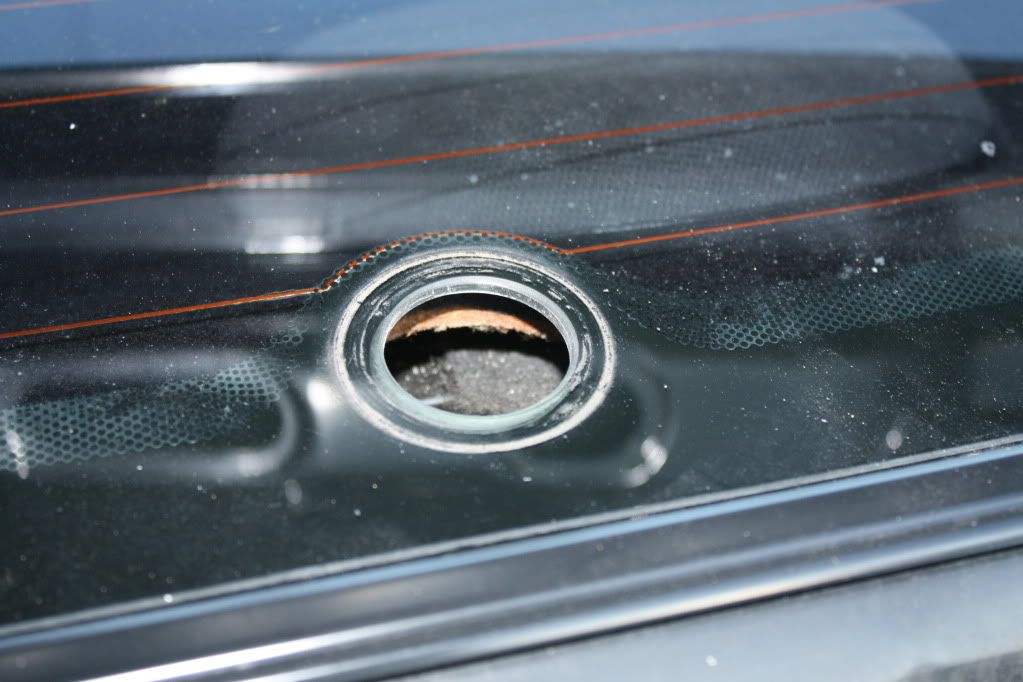

Then remove the rubber gromet from the window here

That's it all removed. Just clean up the glass and add a small amount of sealant to the bung and fit!

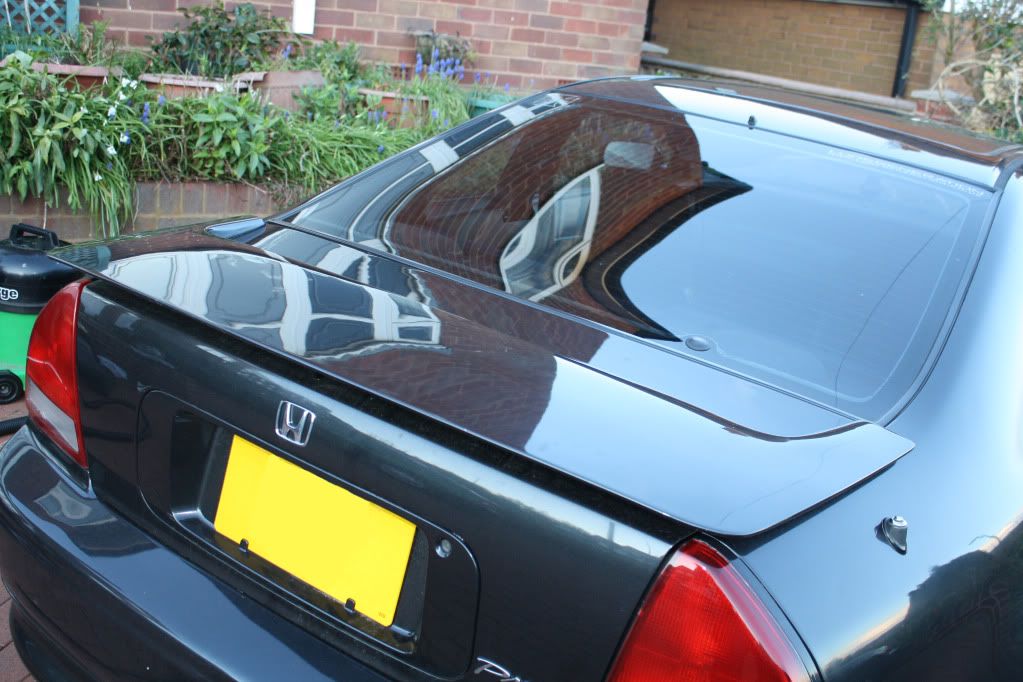

Wider shot (Ignore the completely filthy car

)

Post by **Gayno** » Thu Apr 12, 2012 5:18 pm

Soooo tempted to do this to mine!

mercutio · Post by **mercutio** » Thu Apr 12, 2012 5:19 pm

looks really good

nitin_s1 · Post by **nitin_s1** » Thu Apr 12, 2012 5:27 pm

you one less JDM now.

Looks nice though.

mercutio · Post by **mercutio** » Thu Apr 12, 2012 5:32 pm

nitin_s1 wrote:you one less JDM now.

Looks nice though.

why Uk ludes came with a rear wiper not like the 5th gen nits

Post by **rob quilter** » Thu Apr 12, 2012 5:42 pm

Looks much better de-wipered

Post by **Donald** » Thu Apr 12, 2012 7:00 pm

mart609 wrote:

Looks good mate

I like the giant paperclip as well.

nitin_s1 · Post by **nitin_s1** » Thu Apr 12, 2012 7:43 pm

mercutio wrote:
nitin_s1 wrote:you one less JDM now.

Looks nice though.
why Uk ludes came with a rear wiper not like the 5th gen nits

Oh I see, never knew the 4G had rear wipers regardless of being JDM or UKDM.

Learned something new.

Post by **RattyMcClelland** » Thu Apr 12, 2012 8:36 pm

I might be wiper mine and remove the washet jet. Everytime i accelerated hard in the S water shot out.

rich-kez · Post by **rich-kez** » Thu Apr 12, 2012 8:59 pm

amazing looking car mate! so clean! so glad you changed the wheels from the first set you had looks so much better now!
