Merlin's 2.2 VTi H22a8

[Merlin]

My entry speed into the first corner (Duffus Dip) is 65-70 mph, get it worng and your off!!

[Merlin]

Copied from PUK, but better widescreen vids here

On Saturday I had ampther charity track day at Knockhill. It was the same weekend as the UK drifting series so Ammo was up in Scotland and some of us met up:


3rd gen Steve, Me, Indigolemon, Vanzep, Ammo

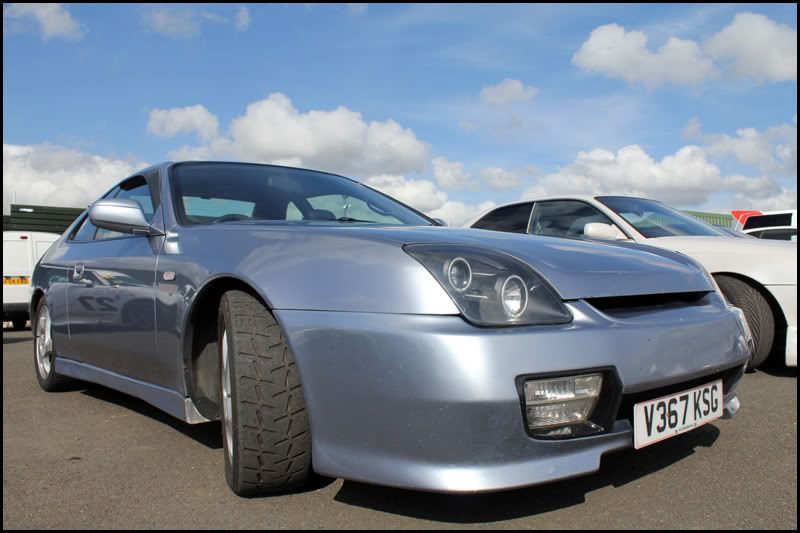

This was the first time I was running MaxSport RB5 rally semi-slicks, I got these cheap as I am tired of burning through relatively expensive RainSport 2's. I quickly refurbed my old OEM blades as the tyres are 205/50/16:





These gave so much grip, I estimate they are worth roughly a second per lap over my road tyres. Braking was also so much better, I was able to brake much later into corners as I was getting more grip from these tyres.

Vids (watch in HD):

Me solo
[hdyt]RyZL4ORVpkQ[/hdyt]

Ammo
[hdyt]ofa6AxLdJhE[/hdyt]

Indigolemon's wife
[hdyt]Ptuy3pHvhnQ[/hdyt]

Vanzep
[hdyt]lXP03fgctKA[/hdyt]

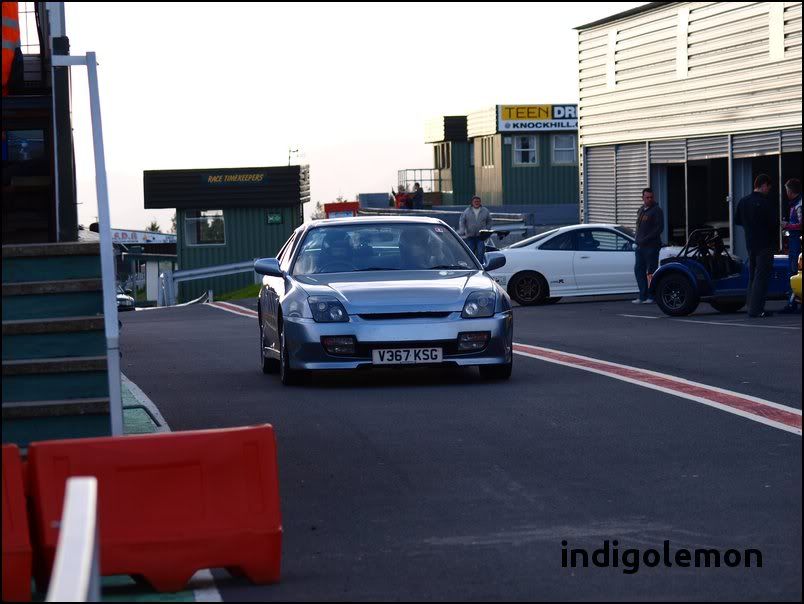

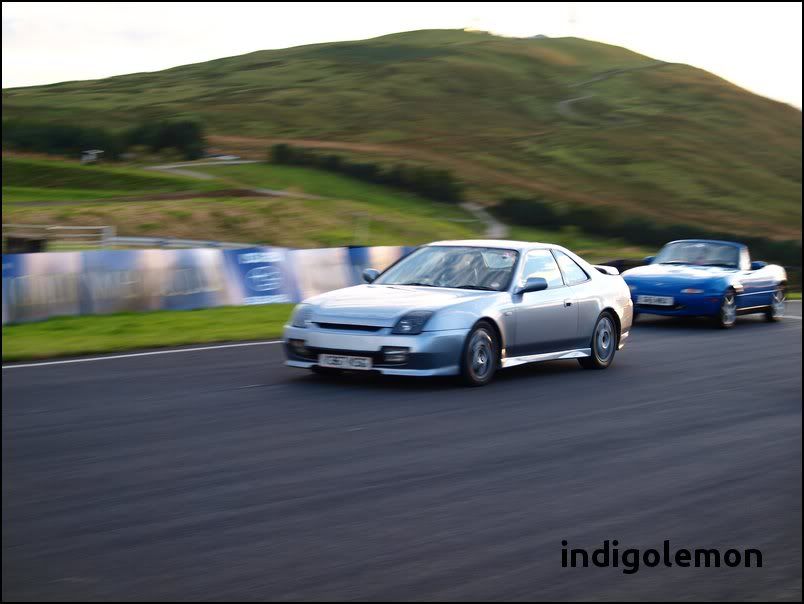

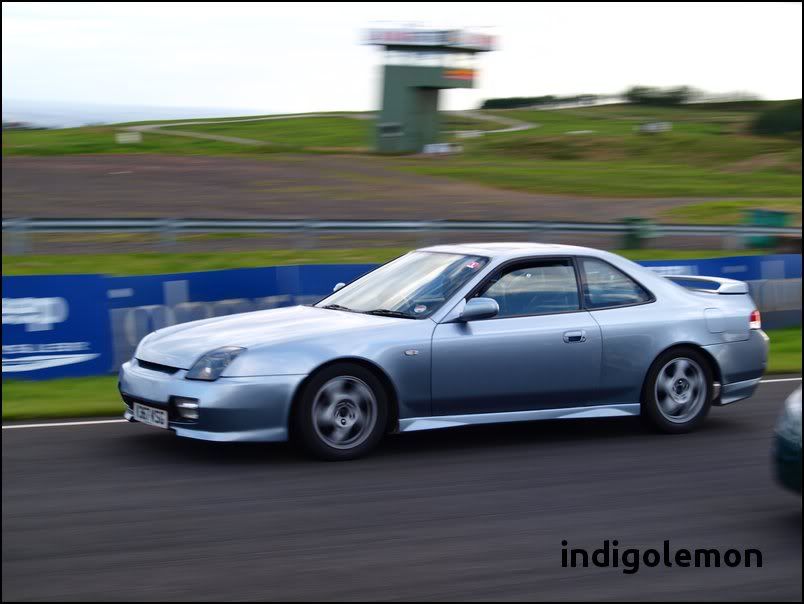

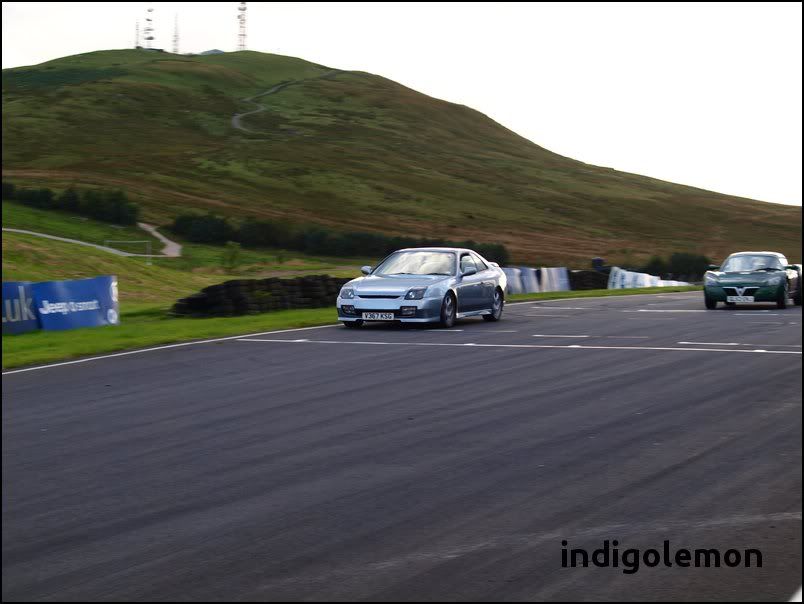

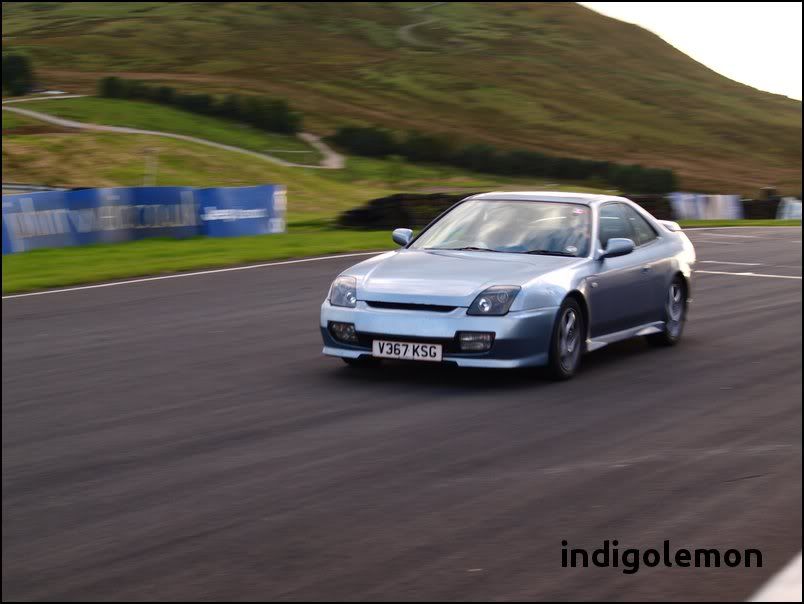

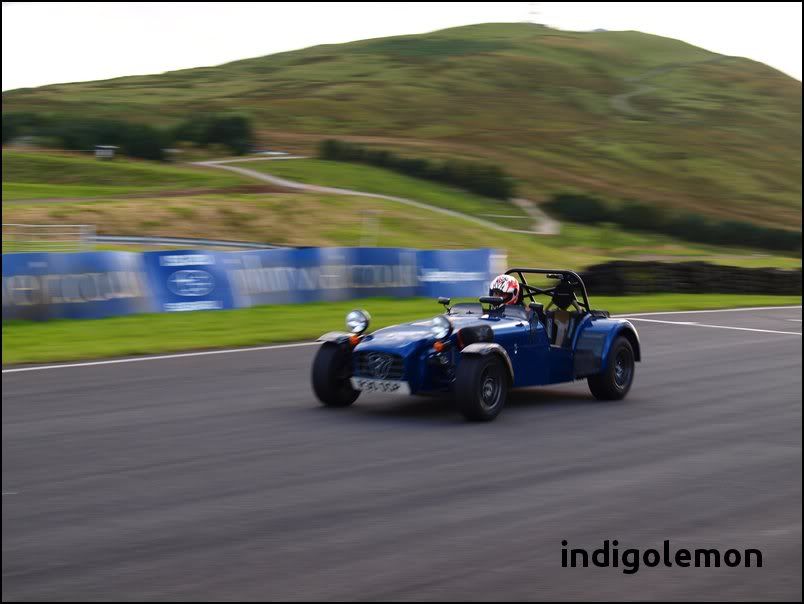

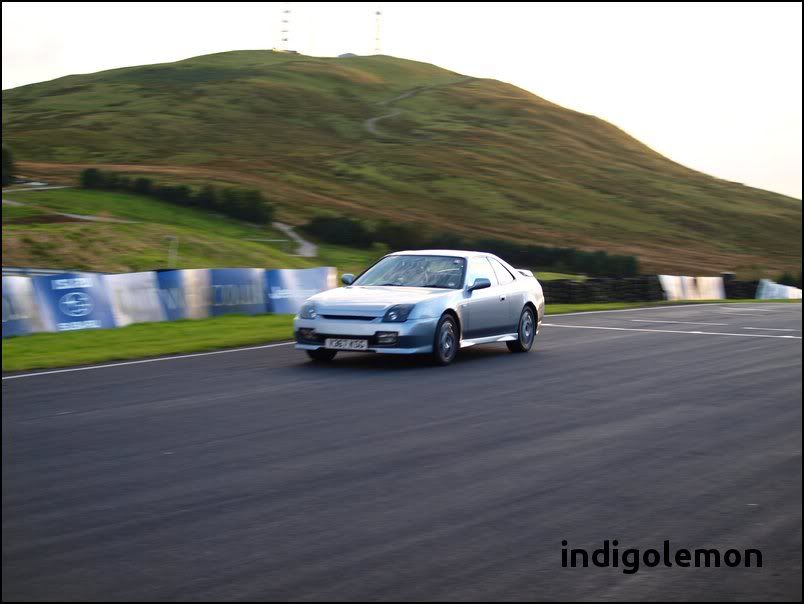

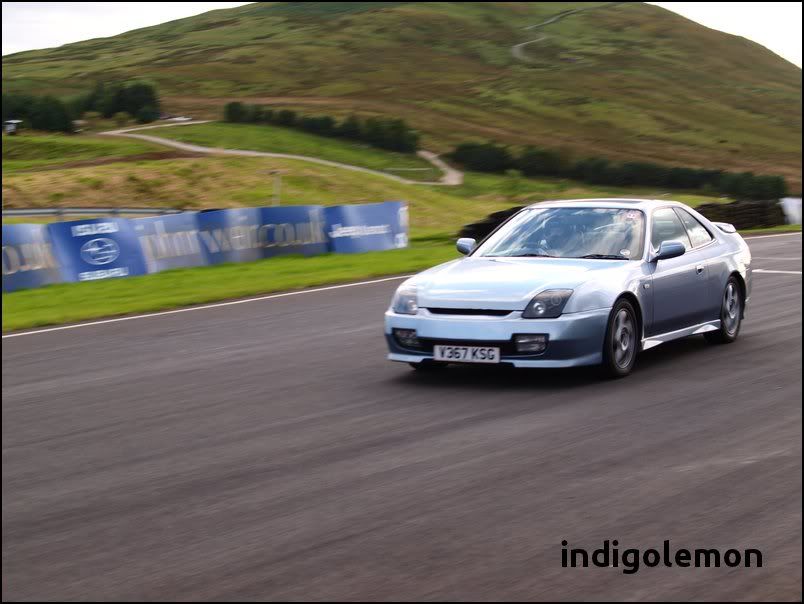

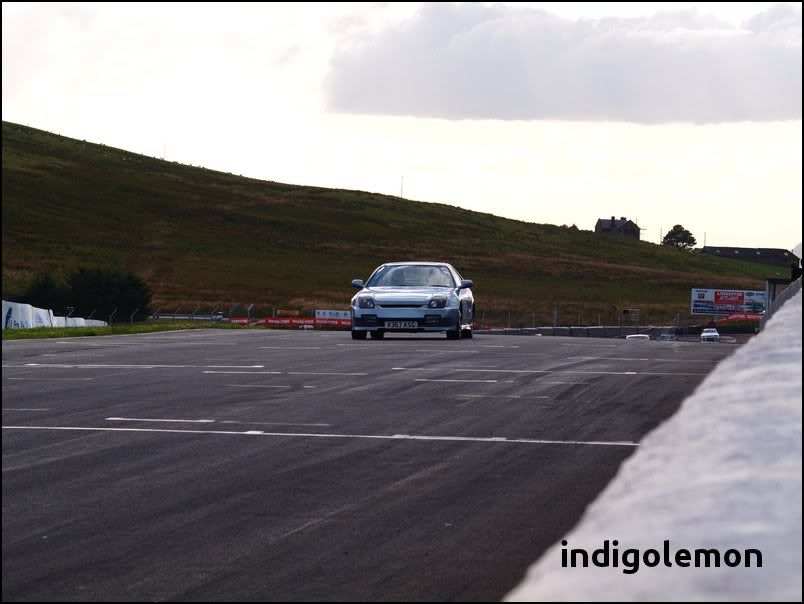

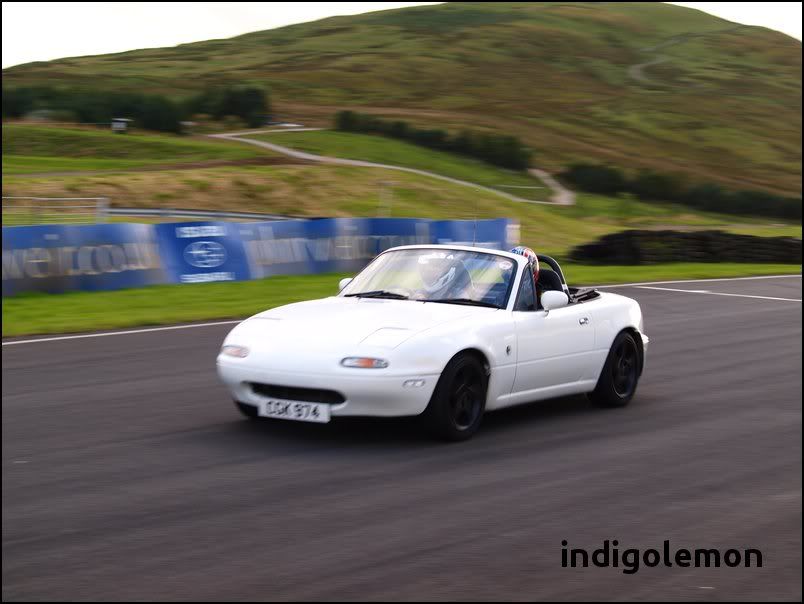

Some pics:

[JayJay]

Nice I was just thinking my brakes would suck on track I'll need some better brake pads (not that they're BAD, they're just not track pads).

Curious as to how my new Maxxis tyres would hold up, they seem quite good so far.

[mart609]

some nice pics from indigo there

[Merlin]

04/09/11 - Time Attack Sprint Event - Track Scotland @ Ingilston

Format - Time Attack Sprint Event
Cost - £35 for the day with BBQ
Conditions - Hot, Hot, Hot

-------------------------------------------------------------

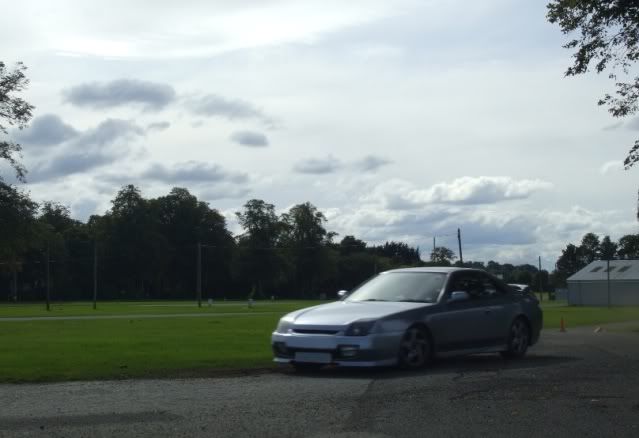

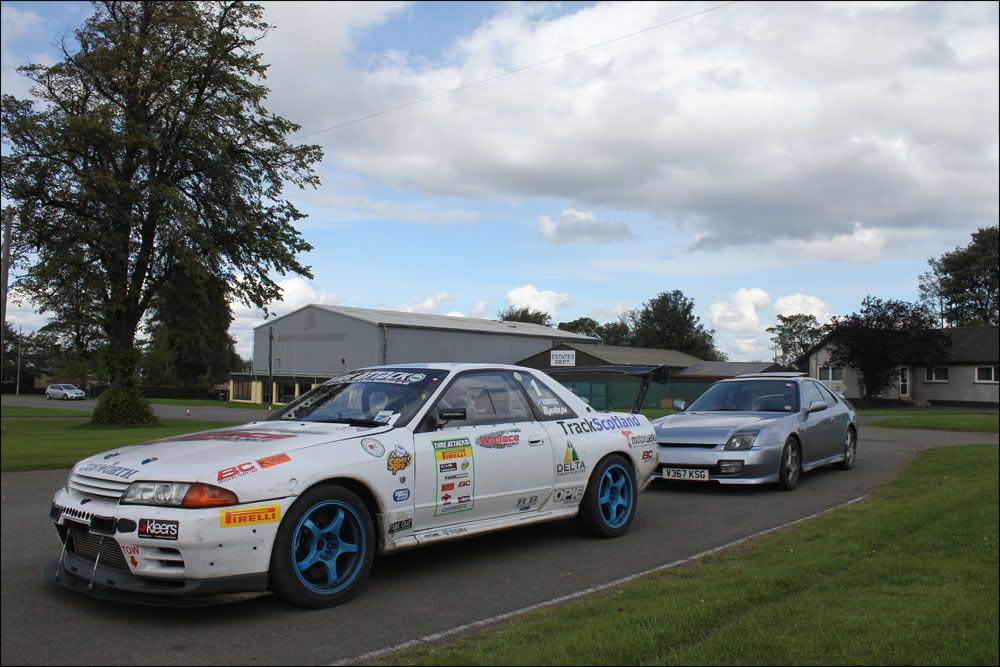

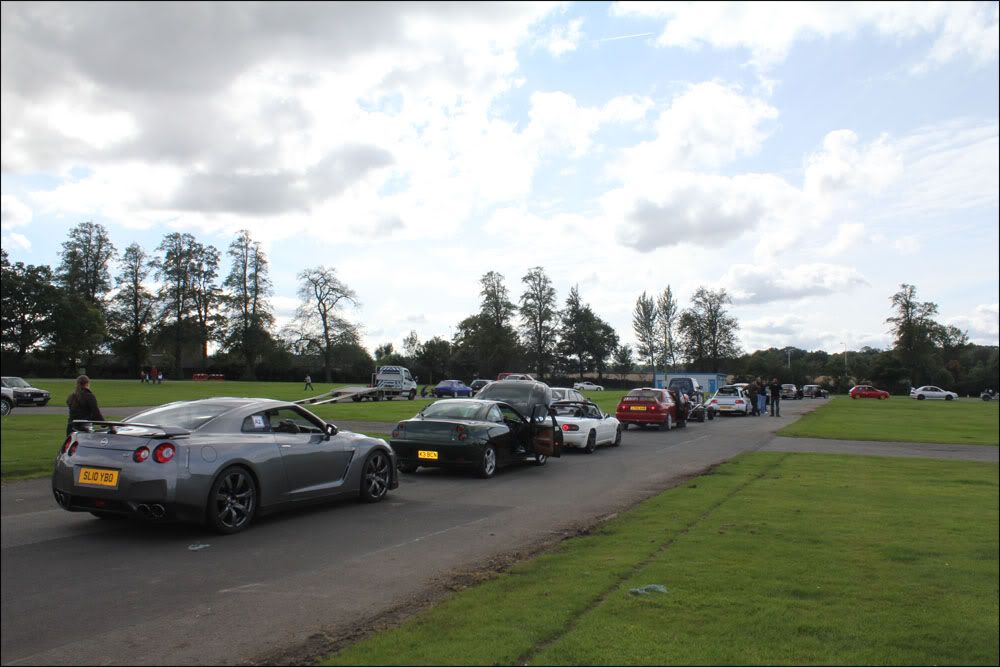

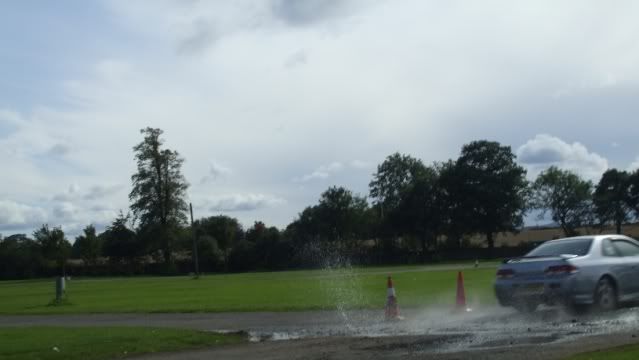

Yesterday was a Sprint organised by TrackScotland in the grounds of Ingilston House, just outside Edinburgh. It was a private event for 20 odd cars which were split in to four groups; A- over 400bhp, B- 4WD under 400bhp, C- RWD, D- FWD. There were 6 of us in class D, but 3 of them were stripped track prepped cars, so my only comparable competition was a Fiat Coupe 20V Turbo, a B16 VTEC Mini, and an MX5 (:evil:) & MR2 from group C.

Perhaps not the wisest of moves but I filled the tank right up before arriving, as I had no idea what to expect from the day. Running out of fuel is the worst thing that could happen. Because of this I put myself at a slight disadvantage, lugging around and extra ~30kg in weight.

The car was still wearing its semi slicks from the last track day as I had done nothing to the car since last time out other than top her up with some oil and adjust tyre pressures.

Track Layout (X = start/finish line)


Two of my best recorded runs, plus some extra camera angles (4WS shot) using my new suction mount, and an Evo with what sounds like a vuvuzela as an exhaust.
[hdyt]14ceXBakmeg[/hdyt]









TIMES:

Class A:

Mike - EVO - 1:06.12
Fee - GTR - 1:07.50
Matty - EVO - 1:07.59
Doug - GTR - 1:08.25
Gerry - EVO - 1:09.75

Class B:

AK - Impreza - 1:05.50
Davie - Impreza - 1:09.12
James - Impreza - 1:09.44
Richy - Impreza - 1:11.13

Class C:

David Long - R400 - 1:06.78
Graeme - Atom - 1:09.87
Chris - MX5 - 1:15.40
Chris - MR2 - 1:16.94

Class D:

Dave Herd - Fiesta - 1:10.62
Daniel - Fiesta - 1:12.53
Mic - Integra - 1:12.84
Merlin - Prelude - 1:15.85
Paul - Coupe - 1:17.06
Niall - Mini - 1:17.09

I posted my best time on my final run of the day, even with screwing up the 2nd corner. If I was carrying less fuel and willing to change down to 1st geat on the really slow corners I bet I would be pretty close to the DC2 ITR above me. All in all I consider this a decent result for the Prelude considering the tiny MX5 (:evil:) only just beat me (hundredths of a second), at Knockhill I breeze past them. Also the Fiat Coupe 20V Turbo just wanted to overheat the majority of the time . Having a road car was no bad thing as it was so hot on the day, guys in track cars emerged sweaty. In the line for the start I had my AC blasting whilst I was out of the car, when I jumped back in it was nice and cool .

[Donald]

Love those 4WS videos, still weirds me out when I really feel it in a car park and stuff. Great time too .

[Merlin]

My crank pulley gave out last Sunday. I was driving on the motorway when my battery and hand brake lights came up on the dash. I pulled off at the next slip road after about half a mile and as I pulled up I heard a knocking noise. The power steering pump belt was off and the alternator/AC pump belt was loose. I poked at the crank pulley and it was loose and wobbly.

I had three options of how to get it fixed; use a uk OEM replacement pulley at over £300 inc VAT, order an OEM pulley from the states and wait for it (£60+), or use the lightweight underdrive pulley I bought for my H22a7 project (£30). I have a track day today, plus I just wasnt going to spend over £300 an OEM pulley so I had to use the underdrive pulley. The underdrive pulley needs different belts, I ordered Continental belts through Eurocarparts (4pk1020 & 6pk1033). As well as the new pulley I needed OEM pulley bolt and woodruff key.

Solid aluminium underdrive pulley, it does not have a rubber dampener like the OEM version.


Underdrive pulley - £30
Pulley bolt - ~£15
Woodruff key - ~£7
Belts - £21
Garage labour - £100

The mechanic said to me that the long belt is a tiny bit too long, its on the limit of the adjuster. The belt chirps a tiny bit on start up, I have been advised to get a slightly shorter belt in the long run.

I was unsure of what difference the underdrive pulley would make. As far as I can tell there is no difference in noise or vibration. I can however feel (well I think ) that the car has a little more oomf when not in VTEC, it seems to rev up a bit faster. Its going to have a trial by fire this afternoon as I'm goin to knockhill

Underdrive pulleys are a bit 50:50 in the world of Preludes, some are for them while others are against. Taffylude makes a good case for them:

Lightweight Pulley Set

Lightweight pullies and underdrive pullies have got to be the most controversial modification available for the Prelude. Across nearly every forum I've been on, the opinion on these seems to be split 50:50.

The theory behind them is virtually the same as that of the lightweight flywheel, but applied to the opposite end of the crankshaft. The pullies are lighter (about 60% lighter), and therefore require less engine power to turn them, so this engine power is 'freed up'.
As well as being lighter, pullies are also available as 'underdrive'. This basically means that they have a smaller diameter crank pulley (around 20% smaller) and therefore will slow the speed at which the accessories such as aircon, alternator etc. run, therby freeing up slightly more HP and allowing the car to rev more freely (a similar effect to that of the lightened flywheel).

The big controversy centres around the fact that the stock Prelude crank pulley has a rubber insert fitted in it.

The argument against the aftermarket crank pulley is that the rubber insert is required in order to dampen out any harmonics and vibrations from the crankshaft, which are the result of the internal combustion process.

The argument for the aftermarket crank pulley points out that the rubber insert is purely an 'engine noise suppressor' similar to what the resonators function is on the air intake system, and the use of a solid metal pulley has no negative effects on the engine internals. They are also quick to point out that the Civic Type-R (which has a very similar engine & performance figures to the H22) comes with a soild metal crank pulley from the factory!

There is no real definative answer to this. There are people who claim that using one of these pullies caused premature wear to their crank bearings, but after looking into it, about 90% of claims like this seem to boil down to hearsay, and "it happened to a mate of a mate" etc. For the genuine cases where damage did occur, who's to say what caused it? A simple lack of lubrication on a bearing or over-revving of the engine could just have likely been to blame...
There are also many, many cases of people using these pullies for many thousands of miles and not having a single problem. Users of the pulley report that it free's up power right through the rev range, and is a great little mod.

I've ummed & arred about getting a set of these pullies ever since my stock crank pulley was damaged due to the pulley bolt not being tightened up properly during the last cambelt change . If anyone remembers in this thread, I had to get a second keyway cut into the pulley, 180 degrees out to the first . So anyway, after speaking with a number of experienced engine experts, as well as my current engine builder, they've assured me that in their opinion these pullies will have no detrimental effect of the crankshaft, so I've decided to give them a try when the engine is re-built.

If I was going to use these I didn't want to stick any old Ebay rubbish on, so I chose to go for the Unorthodox Racing underdrive pulley set.

They seem to be of very high quality, and are balanced from the factory.



Here's what Unorthodox Racing have to say on the rubber insert issue:

"Is my crank pulley a harmonic/torsional/vibration damper or a harmonic balancer?"
People are getting their crank pulleys confused with the harmonic dampers found on some V6 / V8 engines. "Harmonic Balancer" is a term used loosely in the automotive industry. Technically, this type of device does not exist. The "balancer" part comes from engines that are externally balanced and have a counterweight cast into the damper, hence the merging of the two terms. None of the applications we offer use a counterweight as part of the pulley, as these engines are all internally balanced.

The pulleys on most of the new import and smaller domestic engines have an elastomer (rubber ring) incorporated into the pulley that makes them look similar to a harmonic damper. The elastomer in the OEM pulley serves as an isolator, which is there to suppress natural vibration and noise from the engine itself, the A/C compressor, P/S pump, and alternator. This is what the manufacturers call NVH (Noise Vibration & Harshness) when referring to noticeable noise and vibration in the passenger compartment. It is important to note in these applications, the elastomer is inadequate in size and durability to act as an effective torsional damper. If you look at the pulleys on some imports there is no rubber to be found at all. We have samples of these, mostly from Acura/Honda, the Nissan Altima, 1.8L Eclipse, 2.3L Fords, Chrysler 2.2L's, and 1.8L VW's, to mention a few. This is not to say with our pulleys you will hear a ton of noise or feel more vibration from your engine compartment. Most owners who have installed our pulleys notice the engine actually feels smoother. This is result of replacing the heavy crank pulley with our crank pulley. NVH is variable and unique to every car. NVH will increase with the installation of an aftermarket intake and/or exhaust, for example. Think of OEM intake systems in newer cars, they use baffles and resonators in the intake to quiet all the intake noise. Aftermarket intakes eliminate these resonators and create dramatic increases in engine noise from the throttle opening and closing. So to most tuners, certain types of NVH can make the driving experience more enjoyable.

The purpose of a traditional harmonic damper is to protect against crank failure from torsional movement. This is not necessary in most modern engines because of the many advances in engine design and materials. Factors such as stroke length, displacement, inline, V configurations, piston dwell time, piston pin off-set, power output, etc., do determine when and how these harmonics and torsional movements occur.

Again, there is a lot of internet hearsay about crank pulleys. When engine problems occur, too often people are quick to blame the pulley first, rather than taking the time to look logically into why there was a problem. We hope that after reading this you will understand the crank pulleys better.


As said, I'm willing to give these a go, and I believe I've done enough research to at least try them out. If I hit problems down the road, then at least I went into it with my eyes open, and can report back on here

http://preludeuk.forumup.com/viewtopic. ... =preludeuk

[indigolemon]

It's ALIVE

[Merlin]

Muahaha!!

[Merlin]

Well my 5G isnt doing so great just now. Thankfully its all cosmetic

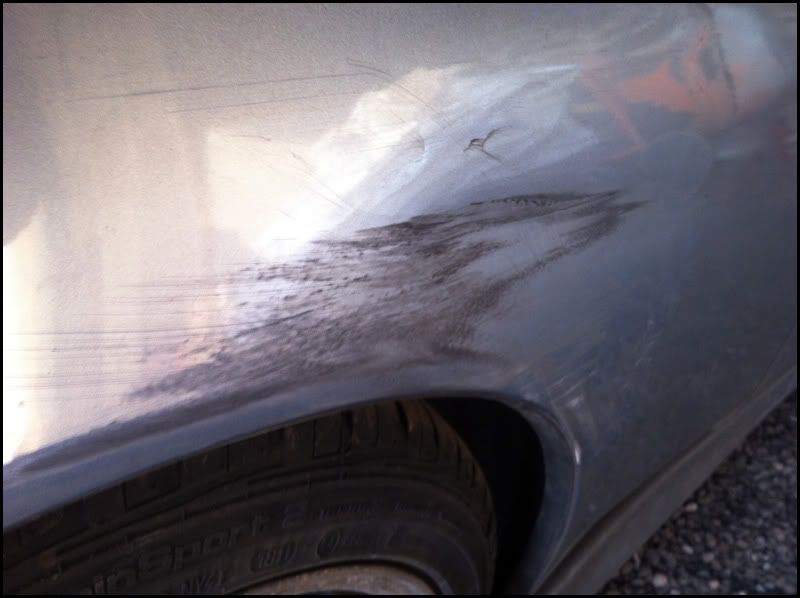

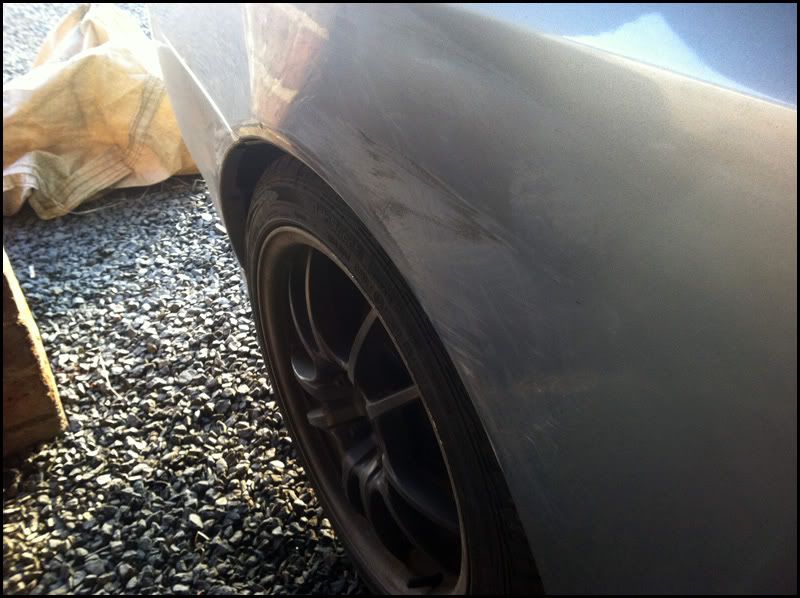

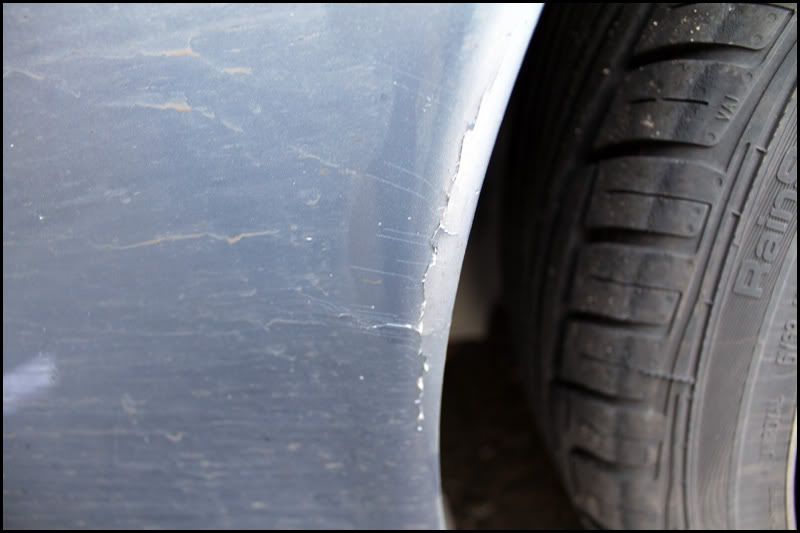

Last May I reversed into a guys low slung trailer at knockhill, it still hasnt been sorted:

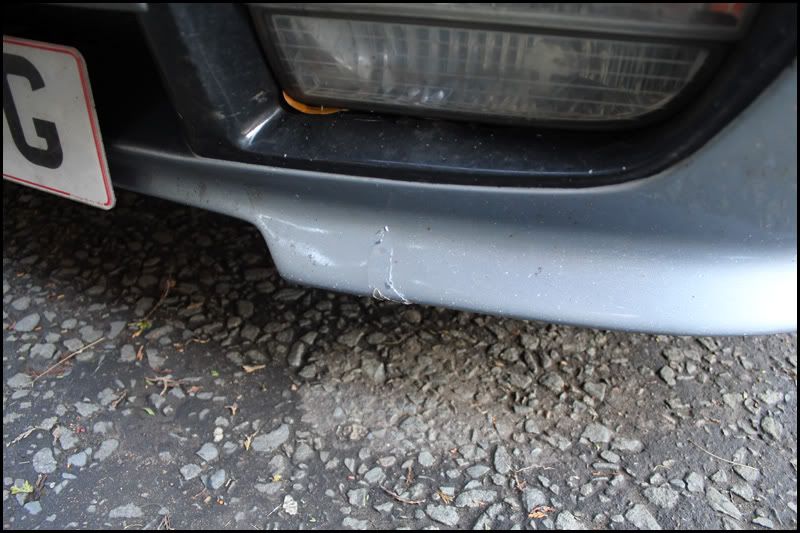

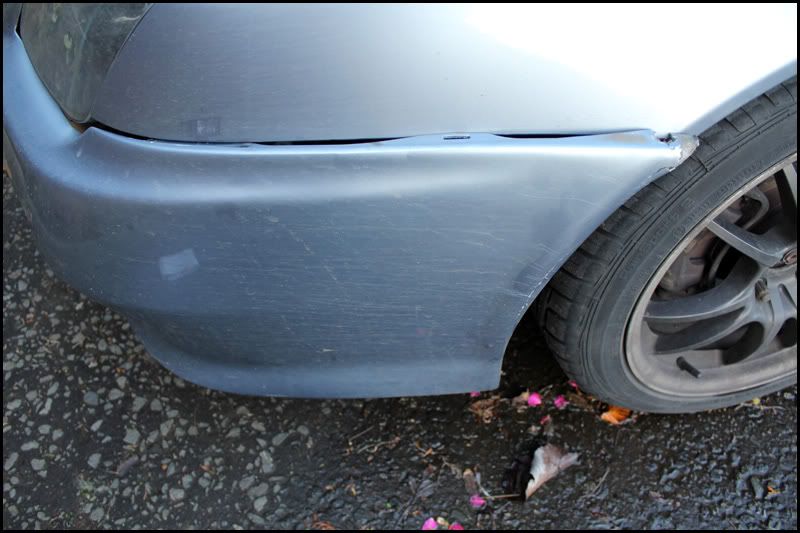

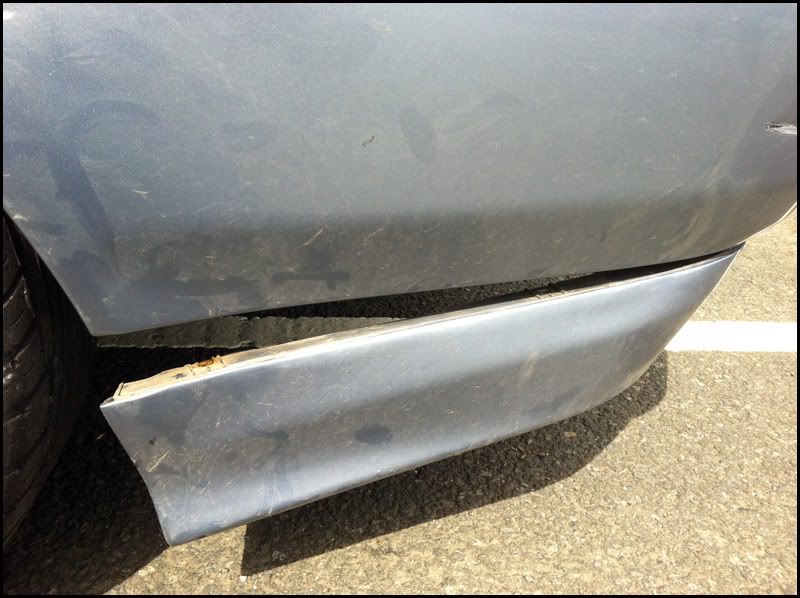

Then I clip a verge and ruined my Mugen bumper:

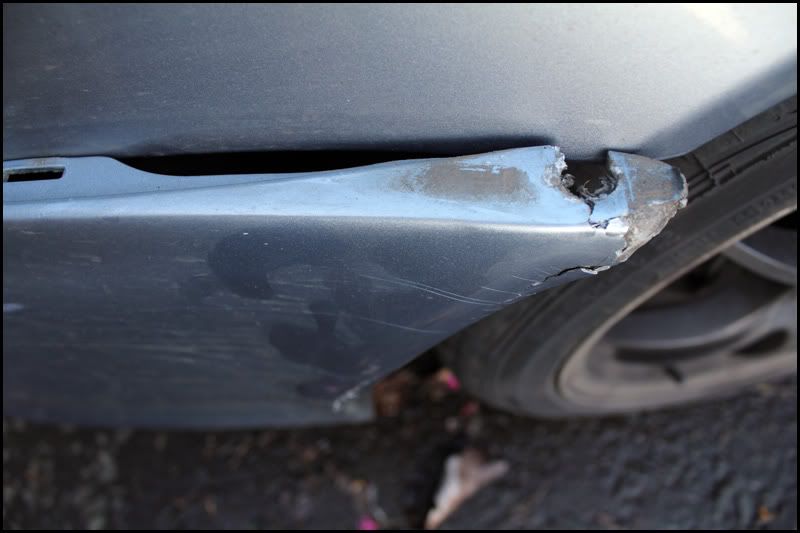

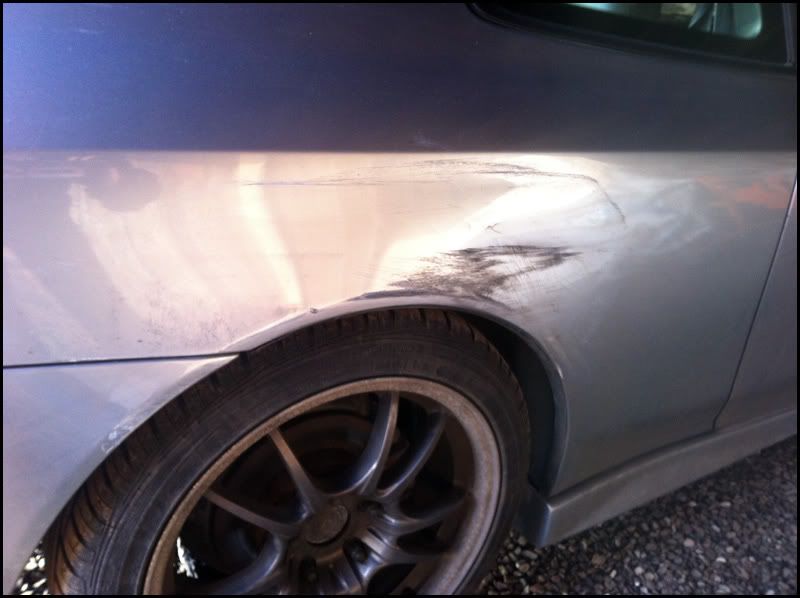

Then last week my dad drives his Toyota Landcruiser into it You cant really see the dent in it from the pics:








All this coupled with a chipped bonnet with bits of resulting rust on it means its off to the body shop in the spring .
