crankshaft snout-update 15/3/2012

Post by vanzep » Wed Mar 07, 2012 12:14 pm

Crankshaft pulley came loose - finally got the cambelt covers off so i could look at the crankshaft snout and it doesnt look good at all - its completely smooth where the pulley sits - i guess thats the end of my lude :cry:
unless there is some sort of fix that i can put in place
has anyone got any suggestions for a fix for this - threadlock or something - would that help
If i just bolt it back up tight and fit a new woodruff key wil that hold it for a while.
Cant believe this has happened days after me spending about a grand on fitting koni shocks,new lcas front and back and new wishbones and driveshaft and doing a rust treatment.
Any suggestions?
Last edited by vanzep on Thu Mar 15, 2012 4:22 pm, edited 2 times in total.
1996-2000 1993 EG9 Blue Civic 1.6 Vti - Traded in against the BB4
2000-2019 1994 2WS BB4 Milano Red JDM Prelude Si VTEC LSD

2015 on > 1991 4WS BB1 Phantom Pearl Grey JDM Prelude Si VTEC LSD
2021 ON > 1998 2WS BB6 White Pearl JDM Prelude Si VTEC
Top
User avatar
4thgenphil
Supporter 2016
Posts: 6660
Joined: Tue Aug 03, 2010 4:15 pm
My Generation: 4G
Location: filming two girls one cup 2
Has thanked: 5 times
Been thanked: 26 times

Post by 4thgenphil » Wed Mar 07, 2012 12:18 pm

put some pictures up mate
:thumbdown:
Top
User avatar
indigolemon
The Chaos Engine
Posts: 6676
Joined: Wed Jun 30, 2010 1:45 pm
My Generation: 4G
PSN GamerTag: M149YSL
Location: Kelty, Fife
Has thanked: 20 times
Been thanked: 70 times
Contact:
Contact indigolemon

Post by indigolemon » Wed Mar 07, 2012 12:21 pm

Get some piccies up nick. Worst case here is we swap the engine - far from the end of your lude!
'On two occasions I have been asked, 'Pray, Mr. Babbage, if you put into the machine wrong figures, will the right answers come out?' I am not able rightly to apprehend the kind of confusion of ideas that could provoke such a question.' - Charles Babbage
Top
User avatar
Lude-dude
Moderator
Posts: 2181
Joined: Tue Aug 03, 2010 10:39 pm
My Generation: 5G
XBOX GamerTag: Vtec Junky
PSN GamerTag: Rob7niner
Has thanked: 3 times
Been thanked: 3 times

Post by Lude-dude » Wed Mar 07, 2012 12:23 pm

new crank or engine/bottom end at the worst

like others said post up a pic

H22a5 UKDM 2.2 VTI 244Bhp 180lbs/ft Crower stage 2
http://www.ludegeneration.co.uk/profile ... t3211.html
Top
User avatar
NafemanNathan
LotM Winner
Posts: 20144
Joined: Sun Aug 08, 2010 9:37 pm
My Generation: 0G
Location: Yeovil, Somerset
Has thanked: 8 times
Been thanked: 122 times

Post by NafemanNathan » Wed Mar 07, 2012 12:23 pm

Do you mean the spline for the pulley to sit on? After the event, was the pulley free to rotate without the crank turning? Because if not and the woodruff key had kept it in sync I have no idea how the spline would have worn off.
Top
User avatar
vanzep
Supporter 2016
Posts: 6994
Joined: Sun Jan 29, 2012 6:38 pm
My Generation: 4G
Location: Edinburgh
Has thanked: 258 times
Been thanked: 403 times

Post by vanzep » Wed Mar 07, 2012 1:42 pm

will get some pics up in an hour or so
yup Nathan the spline that the pulley sits on is smooth - and the crank pulley was not free to rotate as it was still help in place by the woodruff key - it was just wobbling about.
type r engine?
1996-2000 1993 EG9 Blue Civic 1.6 Vti - Traded in against the BB4
2000-2019 1994 2WS BB4 Milano Red JDM Prelude Si VTEC LSD

2015 on > 1991 4WS BB1 Phantom Pearl Grey JDM Prelude Si VTEC LSD
2021 ON > 1998 2WS BB6 White Pearl JDM Prelude Si VTEC
Top
User avatar
NafemanNathan
LotM Winner
Posts: 20144
Joined: Sun Aug 08, 2010 9:37 pm
My Generation: 0G
Location: Yeovil, Somerset
Has thanked: 8 times
Been thanked: 122 times

Post by NafemanNathan » Wed Mar 07, 2012 2:00 pm

Yeah I can't understand that then. The only way the spline can get damaged is if the pulley turned on it and sheared all the teeth off :?
Top
User avatar
vanzep
Supporter 2016
Posts: 6994
Joined: Sun Jan 29, 2012 6:38 pm
My Generation: 4G
Location: Edinburgh
Has thanked: 258 times
Been thanked: 403 times

Post by vanzep » Wed Mar 07, 2012 4:08 pm

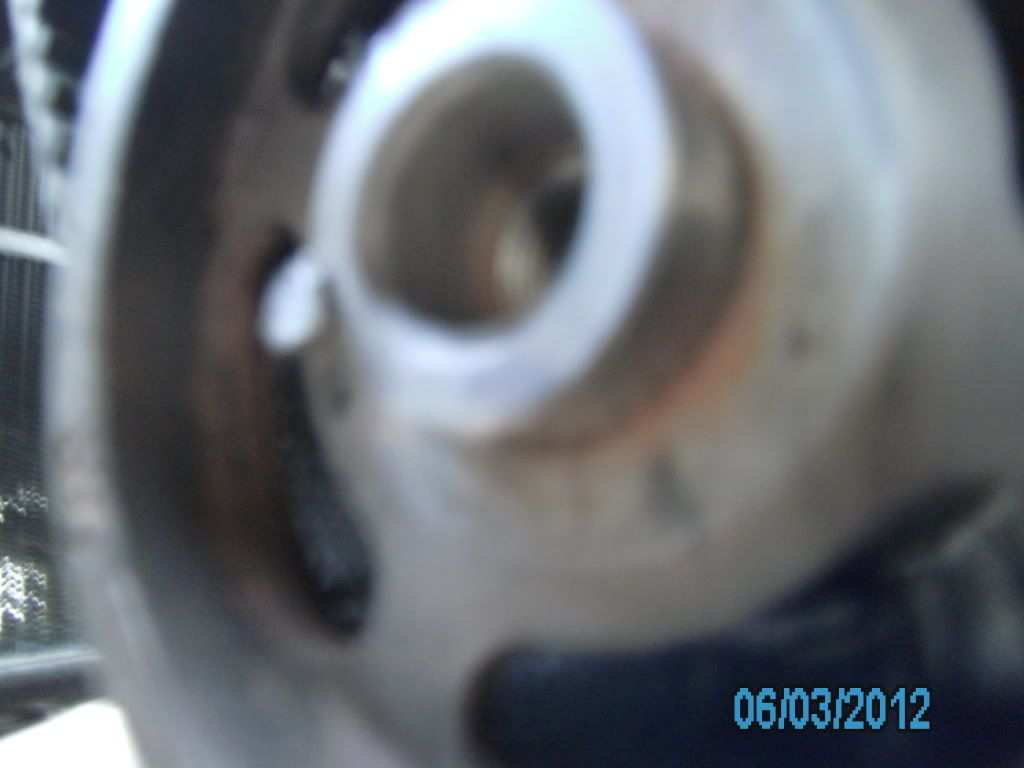

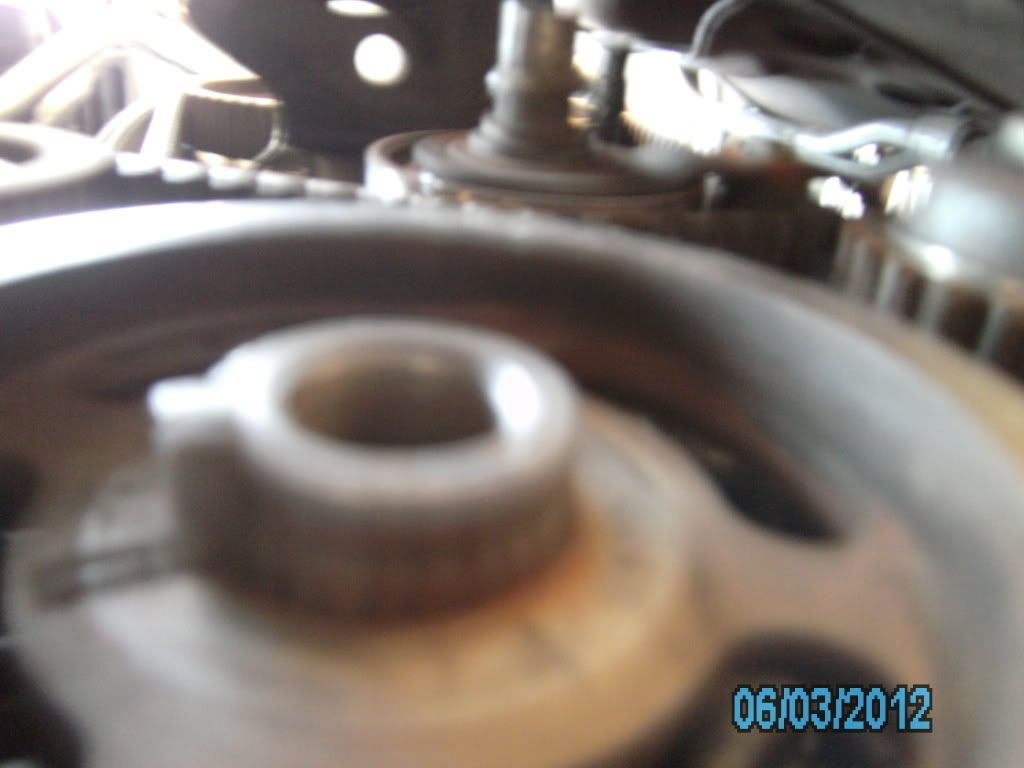

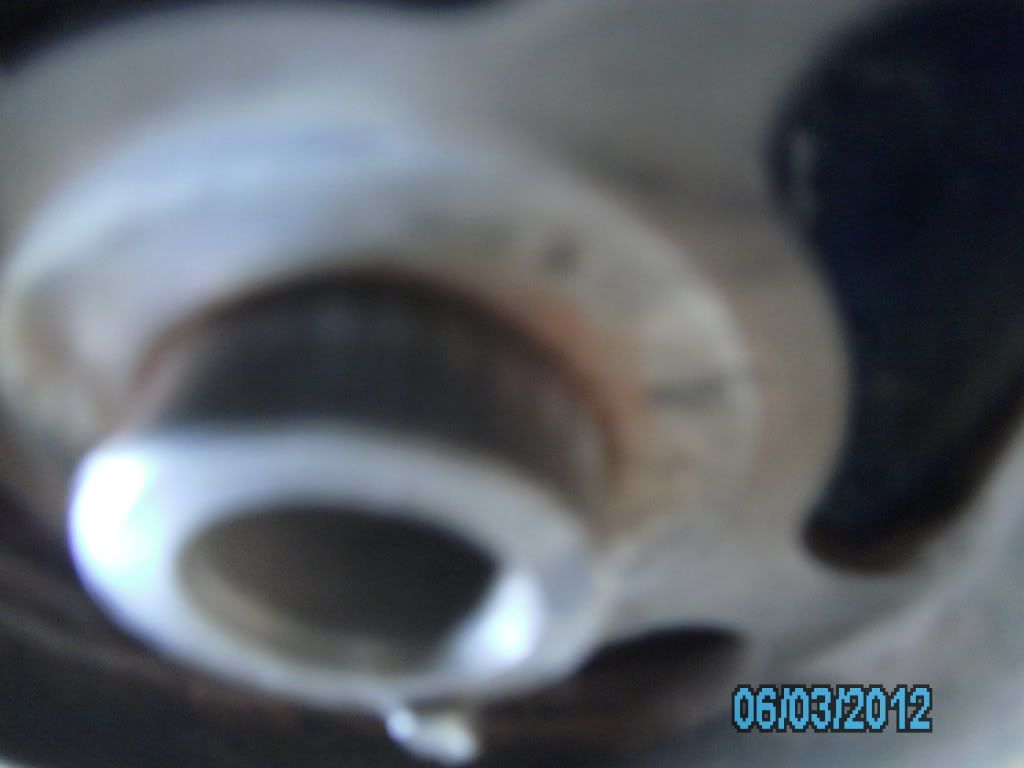

sorry about the quality of the pics - here they are
yup i dont know how its smooth like that either - honda maindealer was last to touch it.
1996-2000 1993 EG9 Blue Civic 1.6 Vti - Traded in against the BB4
2000-2019 1994 2WS BB4 Milano Red JDM Prelude Si VTEC LSD

2015 on > 1991 4WS BB1 Phantom Pearl Grey JDM Prelude Si VTEC LSD
2021 ON > 1998 2WS BB6 White Pearl JDM Prelude Si VTEC
Top
User avatar
NafemanNathan
LotM Winner
Posts: 20144
Joined: Sun Aug 08, 2010 9:37 pm
My Generation: 0G
Location: Yeovil, Somerset
Has thanked: 8 times
Been thanked: 122 times

Post by NafemanNathan » Wed Mar 07, 2012 4:14 pm

Macro? :lol:
Top
User avatar
4thgenphil
Supporter 2016
Posts: 6660
Joined: Tue Aug 03, 2010 4:15 pm
My Generation: 4G
Location: filming two girls one cup 2
Has thanked: 5 times
Been thanked: 26 times

Post by 4thgenphil » Wed Mar 07, 2012 4:16 pm

i'm sure mine didnt have splines either!
