steering wheel removal

Post by **indigolemon** » Sat Jun 08, 2013 6:30 pm

honda-hardy wrote:so will this fit then?

http://www.ebay.co.uk/itm/151055594223? ... 1439.l2649

coz this is what i bought.

Ah, no - sorry man

DC2 has the same spline setup on the column as a 4th gen Lude. You'd need a DC5 wheel for your 5G.

The "S" express · Post by **honda-hardy** » Sat Jun 08, 2013 6:35 pm

whats the difference between 4th and 5th.

Post by **indigolemon** » Sat Jun 08, 2013 6:37 pm

The spline count on the column. Can't remember which one had more, but I had a very restricted choice of other Honda wheels to choose from for my 4th - and the DC2 was the best donor I found.

Post by **indigolemon** » Sat Jun 08, 2013 6:47 pm

Found this in my bookmarks:

The following Hondas use 33 spline:

98-02 Accord
03-07 Accord
08-10 Accord
03-07 Accord Euro R
96-00 Civic (377mm diameter)
01-05 Civic
06-10 Civic
97-01 CRV
96-00 Domani
97-00 EL
01-05 EL
01-08 Fit
09-10 Fit
99-06 HRV
00-06 Insight
97-01 Prelude
99-09 S2000
02-07 RSX
03-07 TSX

The following Hondas use 29 spline:

90-93 Accord (377mm diameter)
94-97 Accord
88-91 Civic
92-95 Civic
92-97 del Sol (371mm diameter)
92-95 Domani
90-93 Integra
94-01 Integra
88-91 Prelude (371mm diameter)
92-96 Prelude

The "S" express · Post by **honda-hardy** » Sat Jun 08, 2013 6:58 pm

the wife has blagged it now,,, looks like im still in the market for a new wheel then.

The "S" express · Post by **honda-hardy** » Sat Jun 08, 2013 10:50 pm

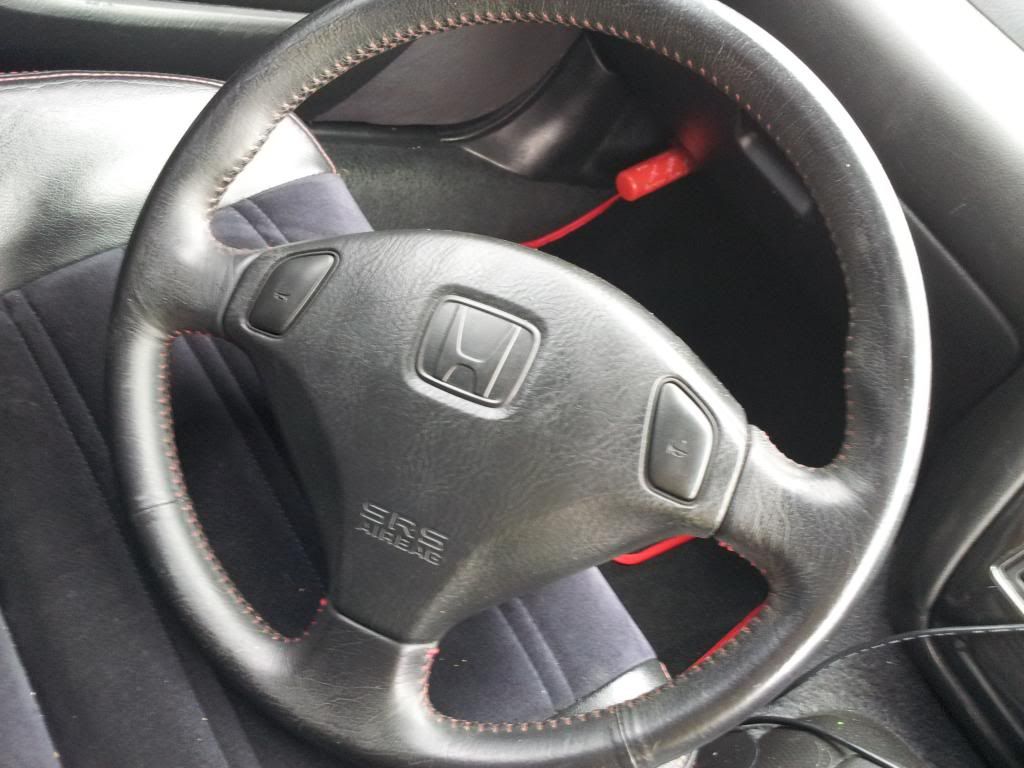

could someone confirm the wheel i have on mine?

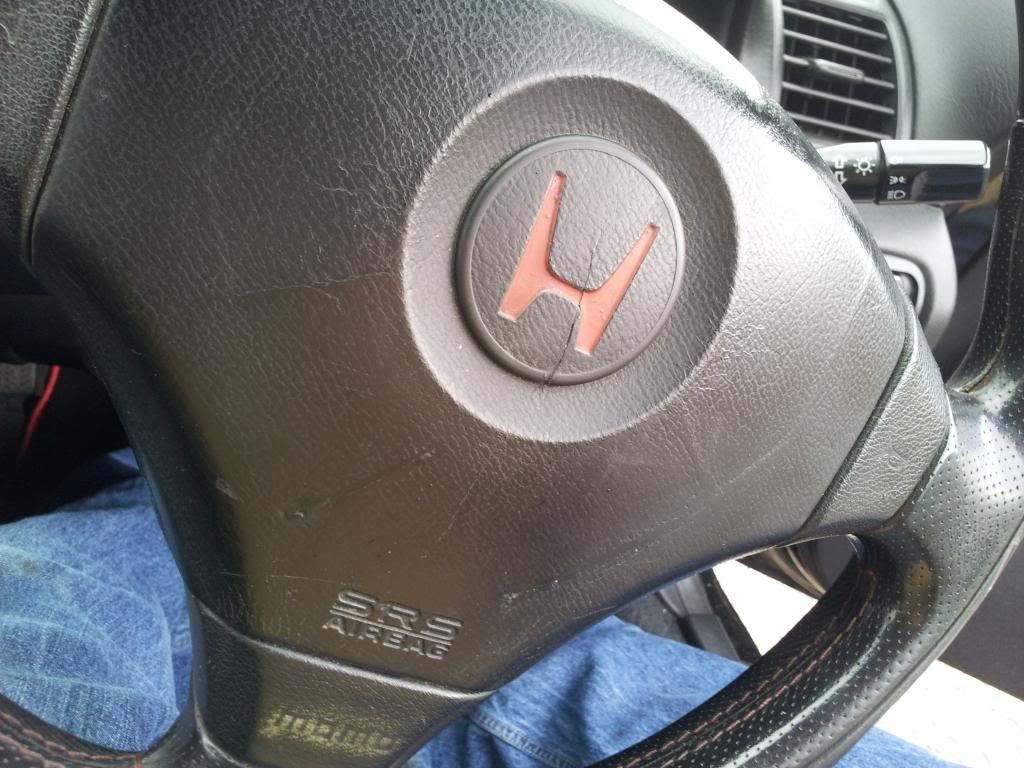

this is the wheel i wanted to fit.

The "S" express · Post by **honda-hardy** » Sat Jun 08, 2013 10:55 pm

the reason i ask is because on ebay is this integra wheel. its the same wheel as i have. but yet integra dont fit.

i think this listing is actually for a type r accord wheel.

http://www.ebay.co.uk/itm/HONDA-INTEGRA ... 3cd23821e3

Post by **indigolemon** » Sat Jun 08, 2013 11:22 pm

Ask him to count the splines! That would tell you wherever it will fit.

The "S" express · Post by **honda-hardy** » Sun Jun 09, 2013 12:55 am

i counted the splines and its 29 on the teg wheel.

Post by **RattyMcClelland** » Sun Jun 09, 2013 12:54 pm

That Teg wheel looks identical to the Type S wheel but trust me it isnt. That Teg wheel is off a 98 spec Teg. WOnt fit. Previous owner to my Type S already tried and tested it.

Simply wont fit. You will have to stick with the fugly Accord Type R wheel for now. Get an EP3/DC5 wheel. £150 on fleejizzz.
