Secondary Intake Soleniod

Post by Rocketrooney » Wed Oct 24, 2012 12:06 pm

where is this and what colour are the wires coming from the connector,

thanks
Racing is Life
Top
User avatar
Merlin
Moderator
Posts: 12393
Joined: Fri Aug 06, 2010 9:04 am
My Generation: 5G
PSN GamerTag: Merlinbadman
Location: Edinburgh
Has thanked: 68 times
Been thanked: 303 times

Post by Merlin » Wed Oct 24, 2012 1:15 pm

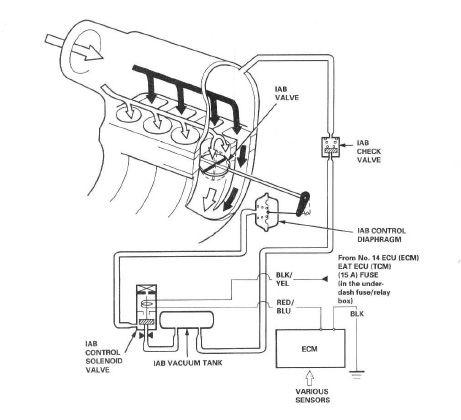

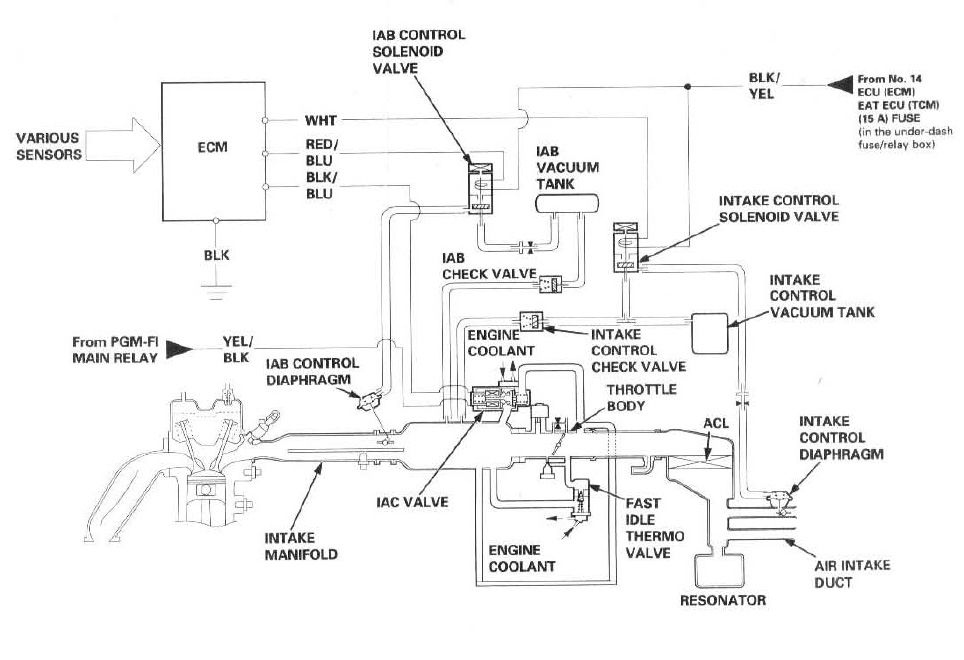

You should be able to find it in the engine bay using these diagrams from sections 11-137 & 11-146 of the 5th gen service manual:



Secondary Intake = IAB's
BA8......... BB4......... BB8.........The JDM Muscle Bus
Top
Rocketrooney
Posts: 384
Joined: Sun Mar 25, 2012 10:01 am
My Generation: 5G
XBOX GamerTag: rooneyrocket200
PSN GamerTag: mattrooney2003
Location: Belfast

Post by Rocketrooney » Wed Oct 24, 2012 6:49 pm

thanks merlin
