Cold Air Feed Trial Fitted

Post by NafemanNathan » Fri Jun 15, 2012 11:18 pm

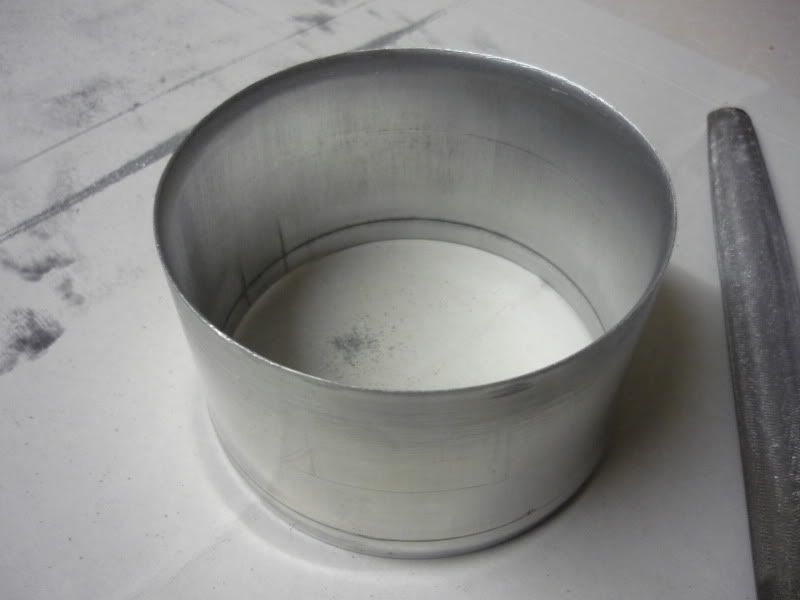

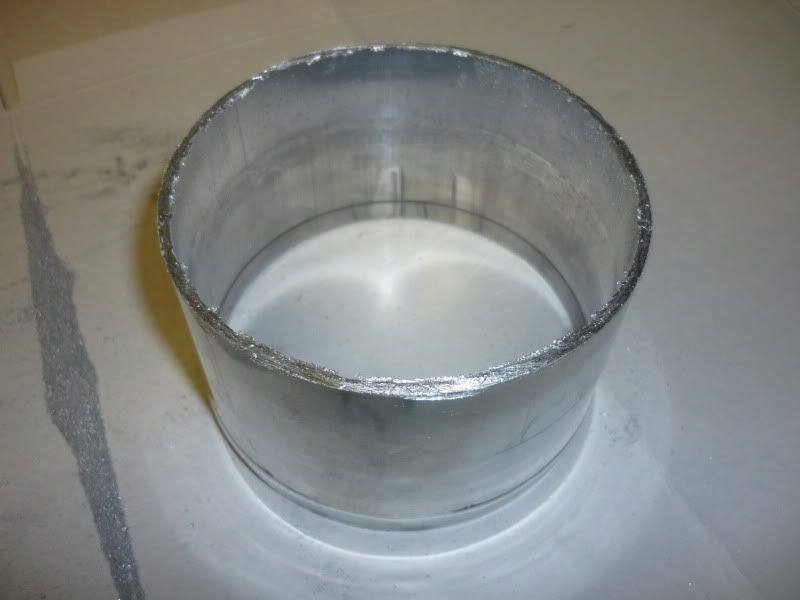

102mm Aluminium pipe cut off about 60mm long...

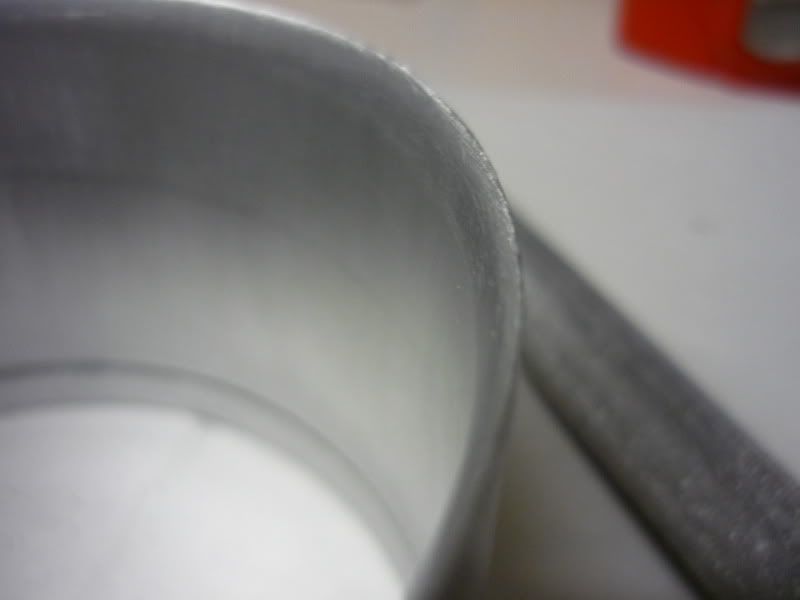

Edge deburd and feathered down...

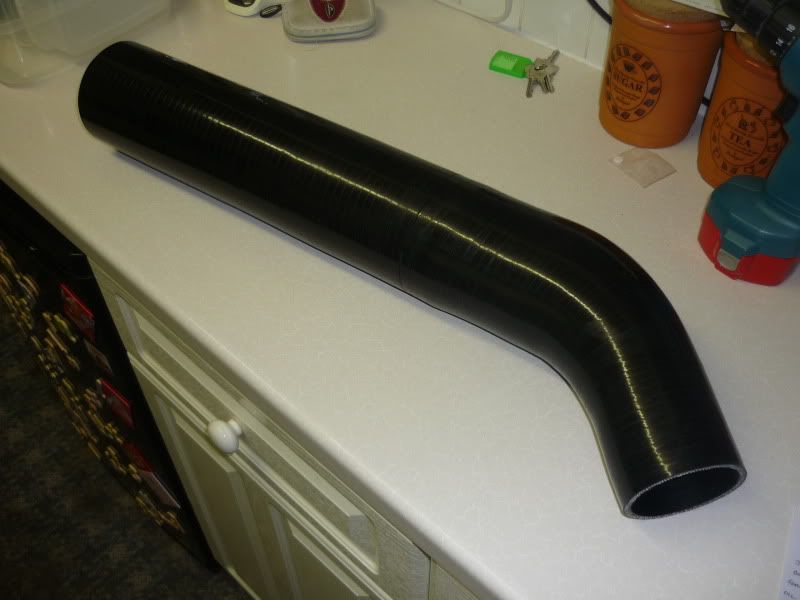

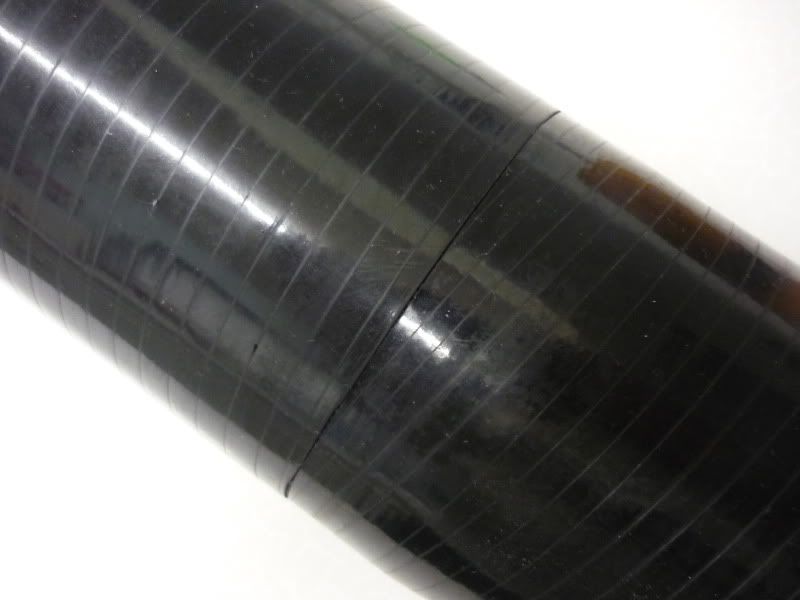

400mm long 102mm diameter Silicone Pipe and 102mm to 76mm diameter 45 degree reducer offered together...

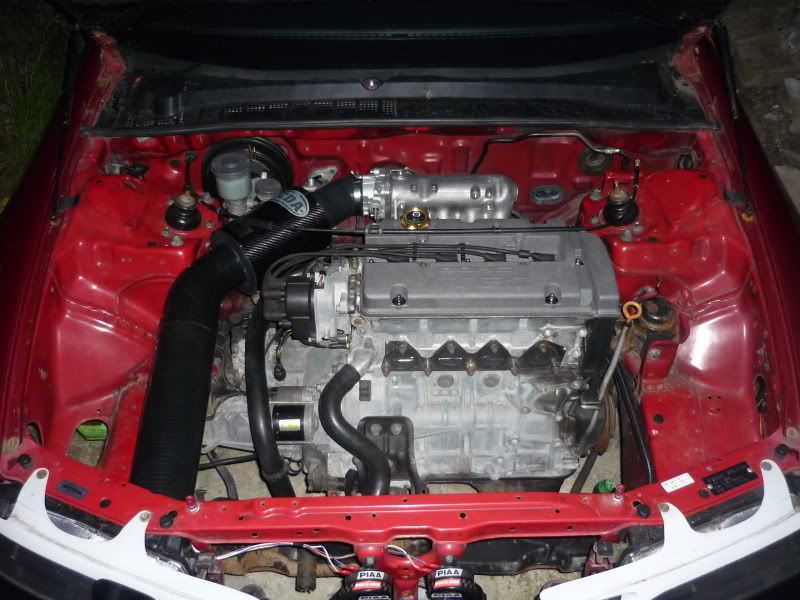

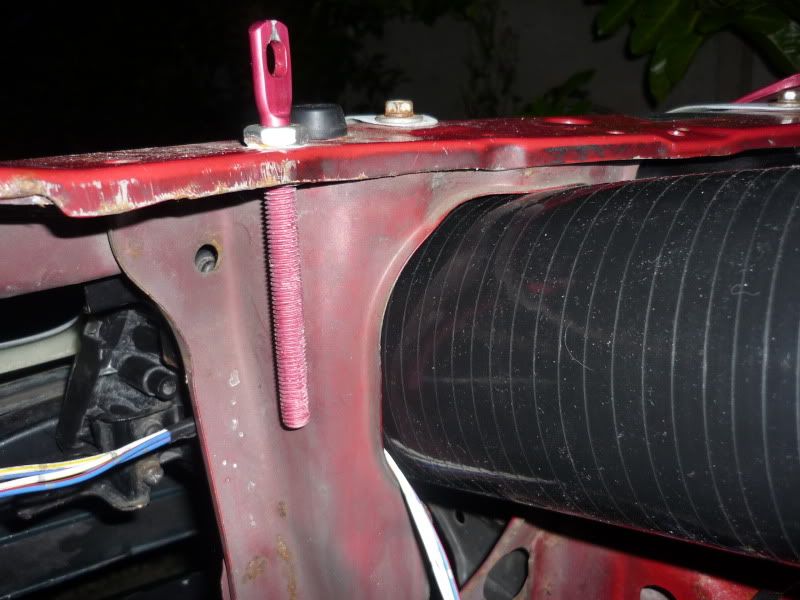

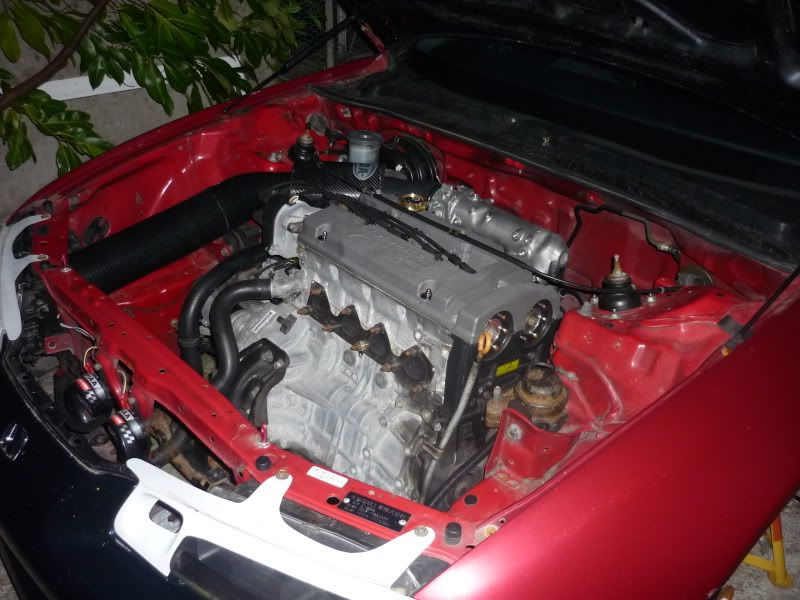

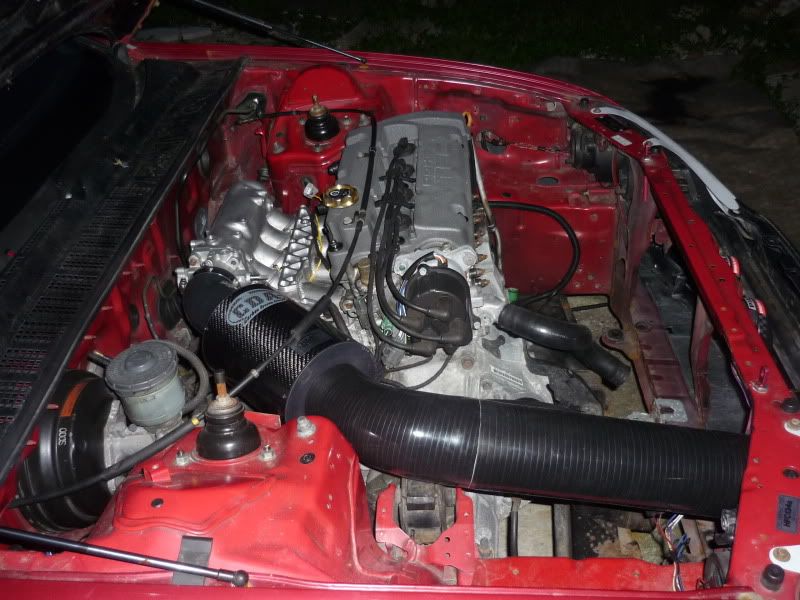

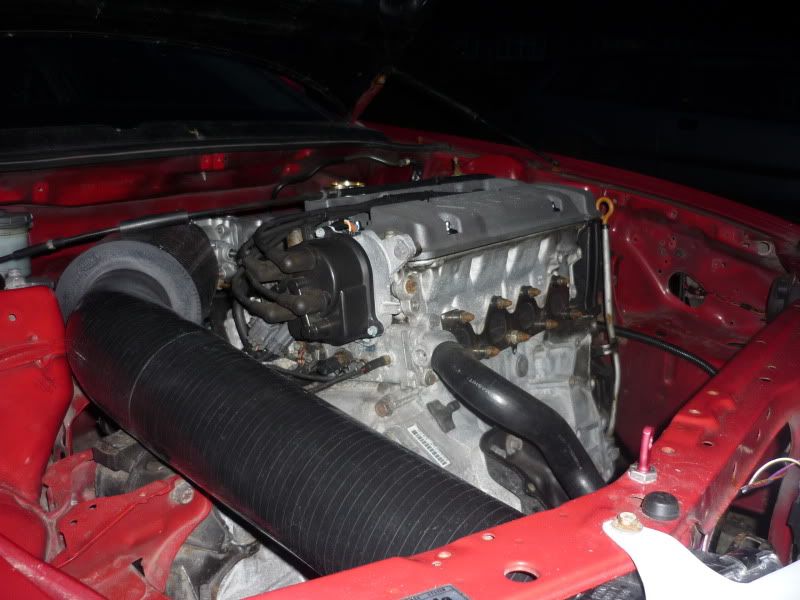

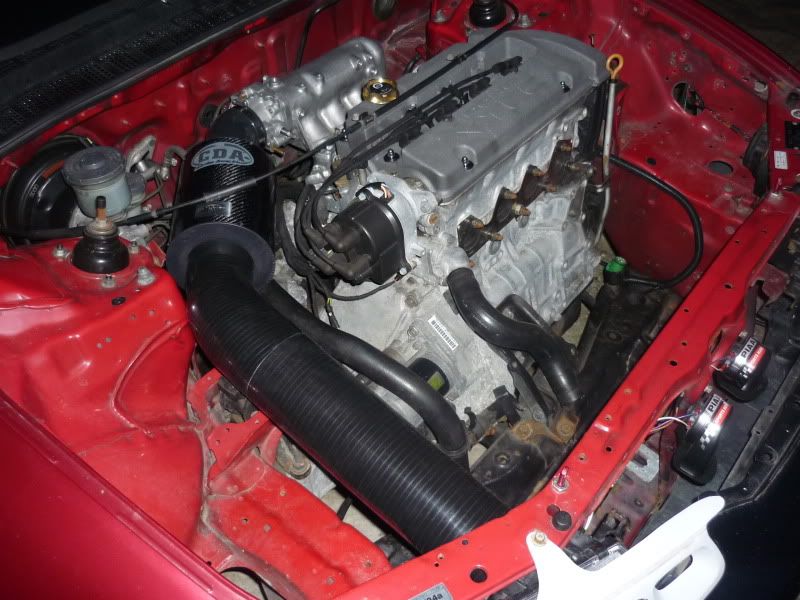

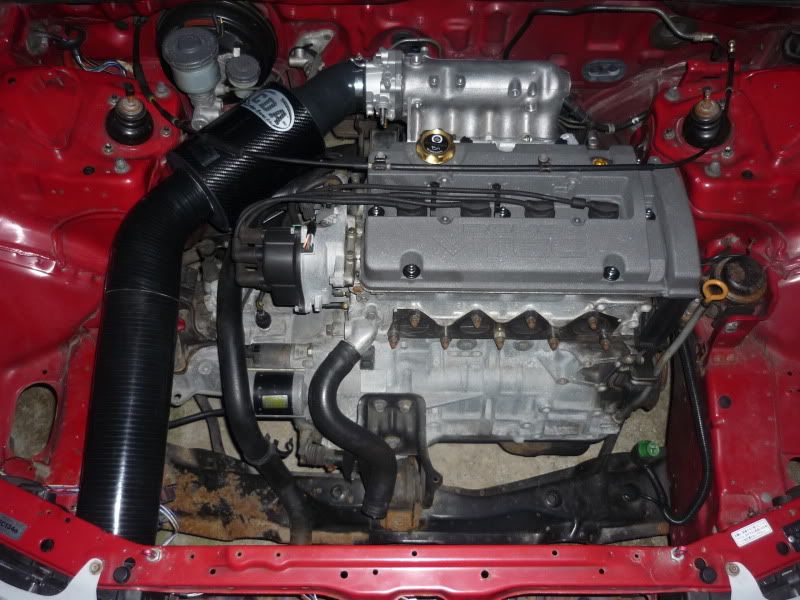

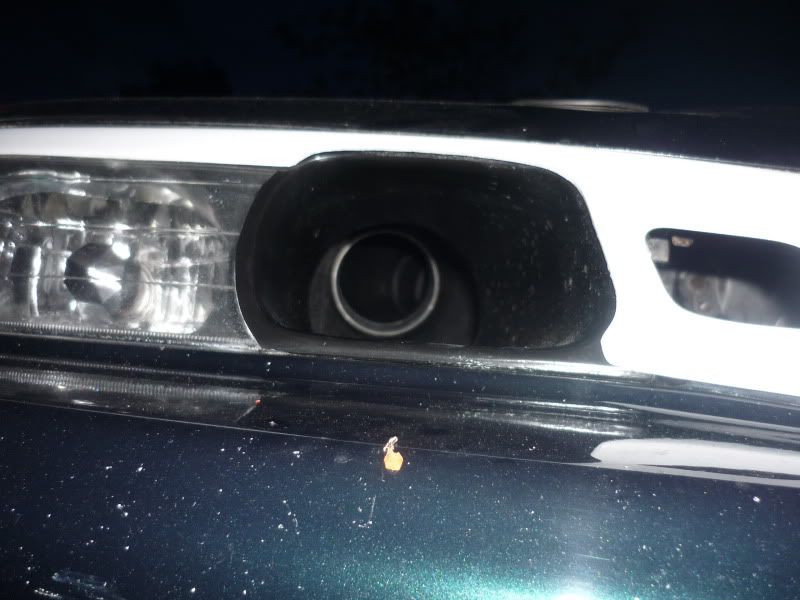

Then with a good amount of offering up, cutting and trialling as soon as I got home tonight after meeting the fabulous Ste and before it got completely dark... I ended up with this...
















I'm happy with it :)

I've also got some dark grey heat wrap that I bought ages ago to wrap the silicone parts of the air feed, which should make it look better still and also reduce air temps even more ;-)
Top
User avatar
mercutio
LotM Winner
Posts: 14958
Joined: Sun Aug 08, 2010 8:45 pm
My Generation: 5G
Location: Sunny Manchester
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact mercutio

Post by mercutio » Fri Jun 15, 2012 11:21 pm

looking good 8-)
bristol_bb4 wrote:ahhh a 5th gen, i love 5th gens :D :lol:
Dino wrote:I loves the 5th gen really.... just dont quote me on it... ;)
4thgenphil wrote:Mines 4 1/4 unches mate, sorry

http://www.ludegeneration.co.uk/profile ... -t618.html
Top
User avatar
4thgenphil
Supporter 2016
Posts: 6661
Joined: Tue Aug 03, 2010 4:15 pm
My Generation: 4G
Location: filming two girls one cup 2
Has thanked: 5 times
Been thanked: 29 times

Post by 4thgenphil » Fri Jun 15, 2012 11:24 pm

thats going to be a PITA to map :lol:
:thumbdown:
Top
User avatar
bristol_bb4
LotM Winner
Posts: 3369
Joined: Mon Oct 10, 2011 2:19 pm
My Generation: 4G

Post by bristol_bb4 » Fri Jun 15, 2012 11:24 pm

theres no getting away from it, that truely is an awesome piece of work! still want you to consider making me one :lol:
Top
User avatar
nucleustylzlude
Moderator
Posts: 4013
Joined: Wed Aug 11, 2010 11:46 pm
My Generation: 4G
Location: Bristol, UK!
Been thanked: 7 times
Contact:
Contact nucleustylzlude

Post by nucleustylzlude » Fri Jun 15, 2012 11:30 pm

That looks awesome mate - turned out amazing!

Good point though Phil - that'll be interesting to get the most out of that with tuning - those large fans they use will struggle to immitate the air feed that'll will acheive at some speeds.

But hey, it's frickin sweet - I want one!
Top
User avatar
Merlin
Moderator
Posts: 12393
Joined: Fri Aug 06, 2010 9:04 am
My Generation: 5G
PSN GamerTag: Merlinbadman
Location: Edinburgh
Has thanked: 68 times
Been thanked: 303 times

Post by Merlin » Fri Jun 15, 2012 11:40 pm

It looks good. How much crap will end up in there, is it easy to take apart?
BA8......... BB4......... BB8.........The JDM Muscle Bus
Top
User avatar
NafemanNathan
LotM Winner
Posts: 20144
Joined: Sun Aug 08, 2010 9:37 pm
My Generation: 0G
Location: Yeovil, Somerset
Has thanked: 8 times
Been thanked: 124 times

Re: Nathan's Road-Legal/Track/Show BB4

Post by NafemanNathan » Fri Jun 15, 2012 11:45 pm

If there's one thing I've learn, it's Rich can do anything! :lol:
Top
User avatar
4thgenphil
Supporter 2016
Posts: 6661
Joined: Tue Aug 03, 2010 4:15 pm
My Generation: 4G
Location: filming two girls one cup 2
Has thanked: 5 times
Been thanked: 29 times

Post by 4thgenphil » Fri Jun 15, 2012 11:47 pm

it weather an s300 can!
:thumbdown:
Top
User avatar
NafemanNathan
LotM Winner
Posts: 20144
Joined: Sun Aug 08, 2010 9:37 pm
My Generation: 0G
Location: Yeovil, Somerset
Has thanked: 8 times
Been thanked: 124 times

Re: Nathan's Road-Legal/Track/Show BB4

Post by NafemanNathan » Fri Jun 15, 2012 11:50 pm

Merlin wrote:It looks good. How much crap will end up in there, is it easy to take apart?
It will be when I've finished with it. I plan on removing the lower headlight fixings and possibly a small amount of the slam panel to enable me to slip and slide it out with relative ease.

With regards to how much crap will fly up there... A lot lol. That's why I thought I'd try my luck and asked for a random O/S headlight protector a few weeks ago. I was going to modify it to become a "mesh" that I can clip on and off depending on the weather/route. Think I'll just have to make one from scratch instead.
Last edited by NafemanNathan on Fri Jun 15, 2012 11:59 pm, edited 1 time in total.
Top
User avatar
NafemanNathan
LotM Winner
Posts: 20144
Joined: Sun Aug 08, 2010 9:37 pm
My Generation: 0G
Location: Yeovil, Somerset
Has thanked: 8 times
Been thanked: 124 times

Re: Nathan's Road-Legal/Track/Show BB4

Post by NafemanNathan » Fri Jun 15, 2012 11:56 pm

4thgenphil wrote:it weather an s300 can!
I've seen it run B-series Civics running ITBs in ram-air boxes, so I'm sure it can cope. The engine will still only draw in as much air as it can cope with, as although I'm hoping for a bit more pressure it's still not forced induction... It's just more readily available air ;-) If not I'll jump that hurdle when we get there :lol:
