Euro r intake

EG_H22 · Post by **EG_H22** » Tue Aug 06, 2013 7:42 pm

Has anyone installed these on their h22,
Ive fitted mine BUT struggling with the IAT sensor, what did u lot do about this?
I heard you can use the standard h22a one or even a b16, only asking as im unsure where to mount it

Some one help please

Post by **NafemanNathan** » Tue Aug 06, 2013 10:45 pm

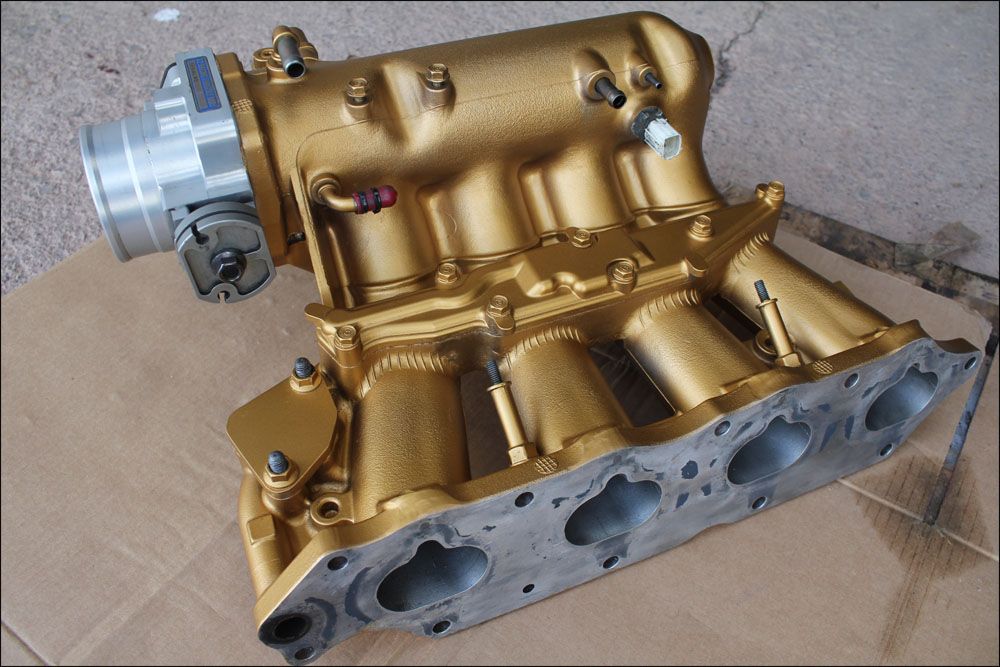

You could either splice an ATR plug on to your loom in place of the existing one (I think I've got one if you want it), or you could retro fit a Prelude one like I've done...

EG_H22 · Post by **EG_H22** » Wed Aug 07, 2013 8:28 am

Sweet mate did u just drill that on to it?

Post by **Merlin** » Wed Aug 07, 2013 9:08 am

I dont think I have one of them on my ATR IM

This is exactly how it was running in Dino's car.

Edit - I do, It is on the right hand side on the front

https://www.roskoracing.com/cgi-bin/com ... ey=200-023

Nathan why do you have that on the back, what is wrong with the ATR one?

EG_H22 · Post by **EG_H22** » Wed Aug 07, 2013 9:32 am

Merlin i do have that sensor on the atr, but because im using a b16 loom as its going in the civic, the sensor is different to the plug on the loom, and was told that i could just use the h22a sensor as shown by nath but thought it went on the intake pipe, if i was to put the h22a like naths on mine what should i do about the atr sensor, would it need blanking?

Post by **Merlin** » Wed Aug 07, 2013 9:55 am

I get you now

EG_H22 wrote:if i was to put the h22a like naths on mine what should i do about the atr sensor, would it need blanking?

I would think you could just leave it if you are not bothered about seeing it there.

EG_H22 · Post by **EG_H22** » Wed Aug 07, 2013 11:26 am

Ok sweet will see what rick and maz will say

Post by **NafemanNathan** » Wed Aug 07, 2013 9:31 pm

Merlin wrote:Nathan why do you have that on the back, what is wrong with the ATR one?

Simply because I'm doing a wire tuck and didn't want to be seeing it

It was easier to retrofit the Prelude one and also didn't require me splicing the ATR plug on to my loom.

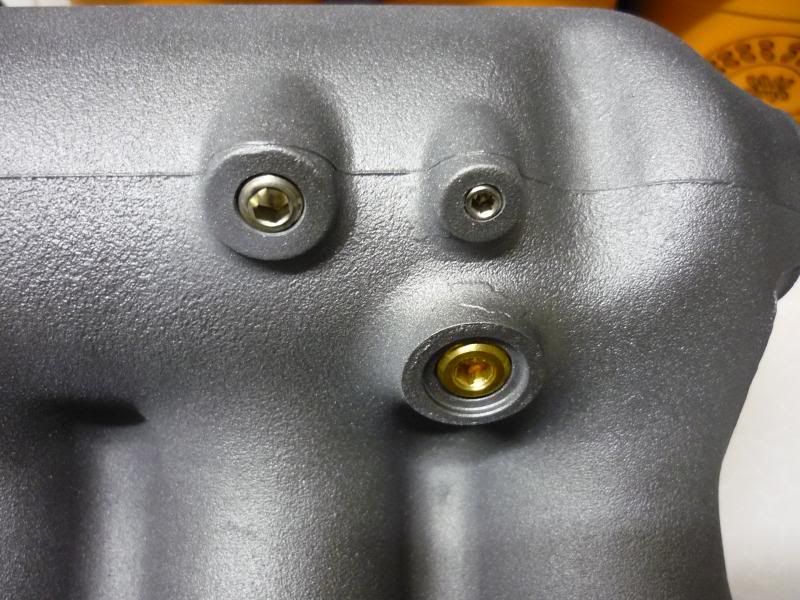

I've blanked the hole...

EG_H22 · Post by **EG_H22** » Wed Aug 07, 2013 10:01 pm

Hmm that looks interesting lol, where did u get the thread nut thing from and what size? How did u keep the retro styly in?

Post by **NafemanNathan** » Wed Aug 07, 2013 10:13 pm

I think it was one of these...

http://www.ebay.co.uk/itm/140762672535

May just want to double check it's an M12x1.5 first.

I made a drill template for retro fitting the sensor on the back, and just tapped the fixing holes. Use a rubber O-ring and be careful not to tighten them too much.
