ATR intake manifold hose help?

Post by **Merlin** » Tue Sep 17, 2013 11:16 am

I need a few pointers on where vacuum hoses go on the ATR H22a7 intake manifold. @Lude-Dude I know you have one working on your car.

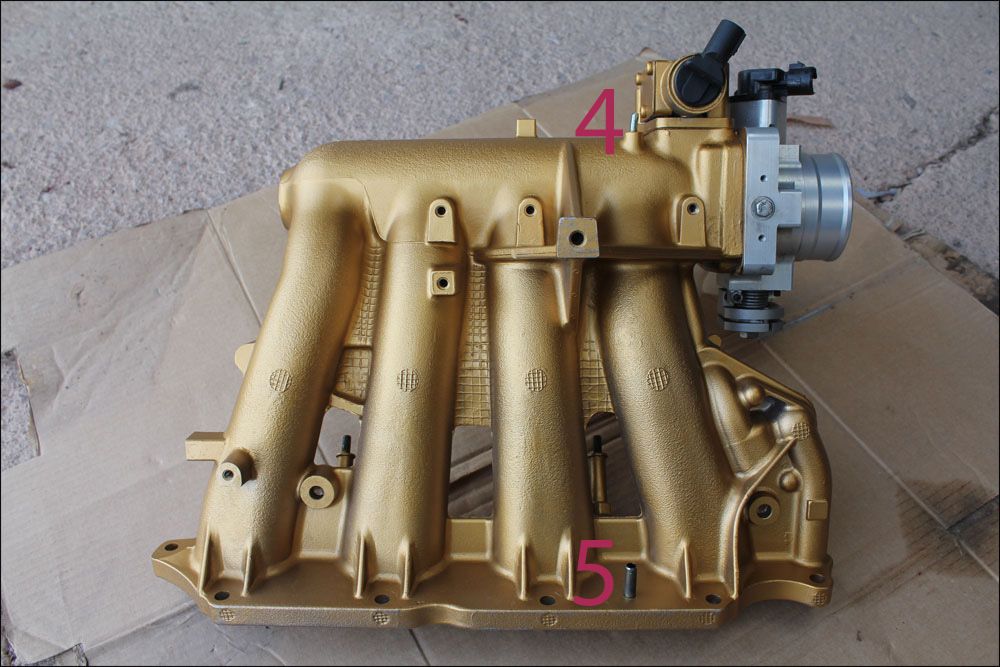

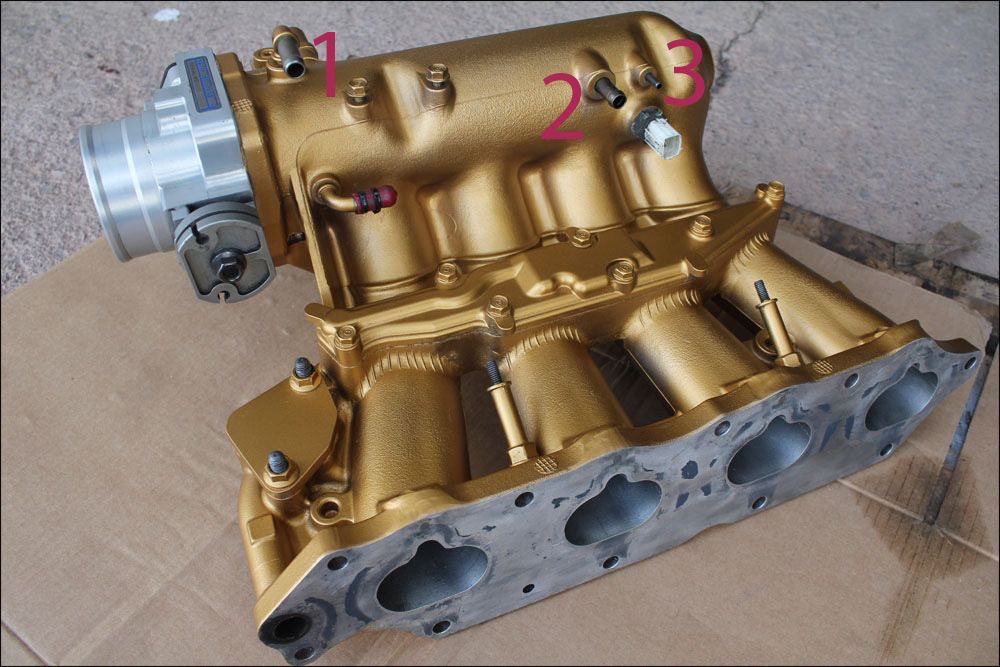

This this what they are?

1. Brake booster
2. PCV hose
3. Fuel pressure regulator
4. MAP sensor
5. blanked off?

Post by **4thgenphil** » Tue Sep 17, 2013 11:20 am

i would help but i can see the pictures

Post by **Lude-dude** » Tue Sep 17, 2013 11:23 am

I have the skunk2 manifold

would it be the same?

Post by **Merlin** » Tue Sep 17, 2013 11:26 am

Crap, I don't think they have the exact same connections. Phil when you see the pics can you have a look on your car please. @NafemanNathan might know this too.

bennyboy · Post by **bennyboy** » Tue Sep 17, 2013 11:27 am

I have one on mine @merlin, will take a look later if you like?

Post by **Merlin** » Tue Sep 17, 2013 11:27 am

Please

bennyboy · Post by **bennyboy** » Tue Sep 17, 2013 11:27 am

No prob

Post by **NafemanNathan** » Tue Sep 17, 2013 11:34 am

You're spot on Merlin

Post by **Merlin** » Tue Sep 17, 2013 11:48 am

Thanks.

Anyone know the outer diameter of the brake booster pipe? Would it be 13mm? I need to reroute the brake booster pipe as the OEM one doesn't want to go to that location.

Post by **NafemanNathan** » Tue Sep 17, 2013 12:05 pm

I've relocated mine Merlin, but you can actually twist it. It's only an interference fit, so if you clamp if carefully, you should be able to rotate it without requiring heat. Mine did and then just popped out.

Otherwise 5/16 (8mm) comes to mind.
