PIC WANTED - EL dials inverter mounting

Post by bennyboy » Tue Apr 29, 2014 2:18 pm

Hi all,

I have the inverter and the mount attached to it, but I could not work out how the bloody thing fitted to the car!
I know it should be easy as it only has so many options, but no. :x

Does anyone have a pic of behind the tweeter, showing the orientation of the inverter/mount?

Ta muchly! :D
Last edited by bennyboy on Tue Apr 29, 2014 4:05 pm, edited 1 time in total.
UKDM BB1 H22A8 NH561P 244bhp 173lbft

'Nigella'

www.benaskem.co.uk

User avatar
wurlycorner
Ye are glad to be dead, RIGHT?
Posts: 21496
Joined: Sat May 19, 2012 3:33 pm
My Generation: 4G
Location: Chelmsford, Essex
Has thanked: 2483 times
Been thanked: 307 times

Post by wurlycorner » Tue Apr 29, 2014 3:01 pm

Yes!

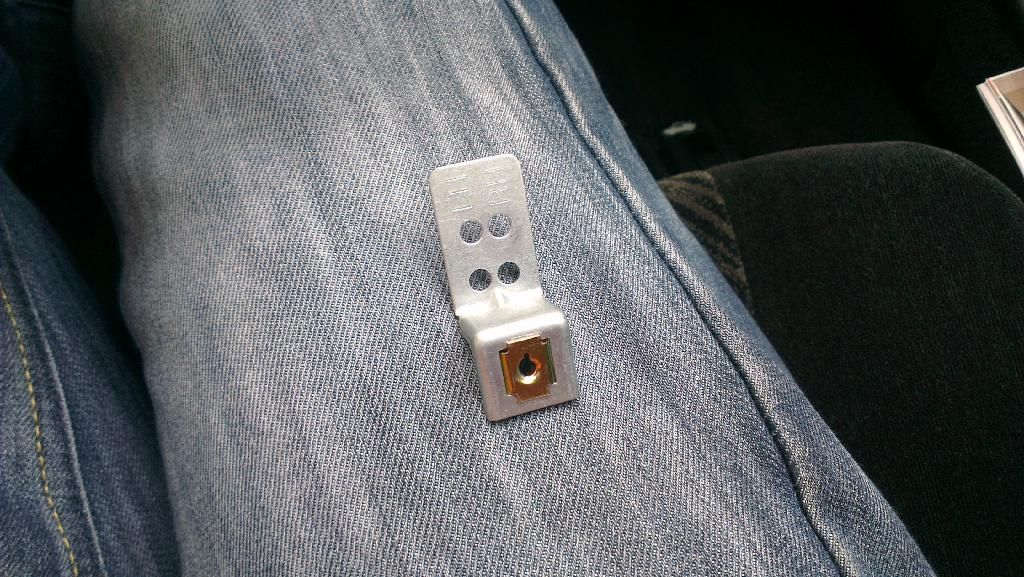

This is the little bracket that goes at the back of the invertor to brace it out from the dash and stop it flapping about

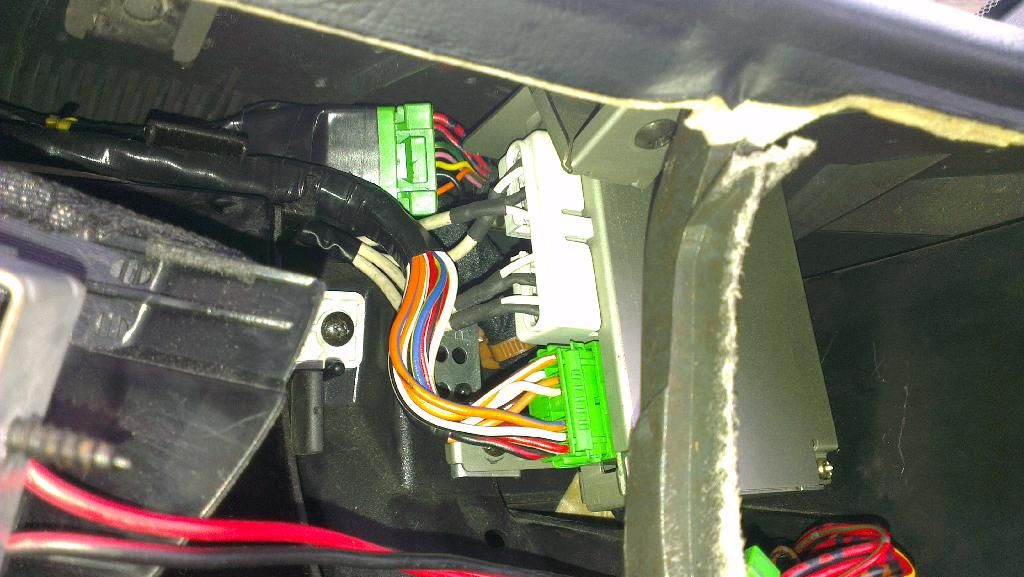

This pic shows a close up of it in place.
One of the bottom 2 holes locates on a plastic peg sticking out of the dash (left or right, depending on LHD or RHD) - this is probably there on your car even if it didn't originally have EL dials.
The top holes should screw into a self tapping clip pressed into the dash (same as you could see in the bracket itself) - this is probably NOT there on your car if it didn't have EL dials before.

This pic shows the rear bracket and the top one, that screws up under the top of the dash, to take the 'weight' of the invertor.

User avatar
bennyboy
Art Mechanic
Posts: 2825
Joined: Sat Aug 20, 2011 11:59 am
My Generation: 4G
PSN GamerTag: OCbennyboy
Location: St Albans, Herts.
Has thanked: 7 times
Been thanked: 21 times
Contact:

Post by bennyboy » Tue Apr 29, 2014 3:51 pm

Legend! Thanks wurly, so the bracket I was looking at goes at the top... :facepalm: :lol:
UKDM BB1 H22A8 NH561P 244bhp 173lbft

'Nigella'

www.benaskem.co.uk
