what my missing

preludemanh22 · Post by **preludemanh22** » Sat Feb 27, 2016 9:50 am

went to fit original steering wheel but looks like im missing some parts ?? no horn etc

mercutio · Post by **mercutio** » Sat Feb 27, 2016 9:52 am

clock spring?

Post by **ek9sid** » Sat Feb 27, 2016 10:11 am

mercutio wrote:gentleman's sausage ring?

Oh really?!

EDIT: Damn swear filter

mercutio · Post by **mercutio** » Sat Feb 27, 2016 12:21 pm

nice try

89 UKDM BA4 4WS (resto job!) · Post by **wurlycorner** » Sun Feb 28, 2016 11:08 am

Yep, you're missing some bits there...

Don't have any pics to hand of what it should look like though.

to the muppet that ripped all that out - there is no need to!!!

preludemanh22 · Post by **preludemanh22** » Sun Feb 28, 2016 11:13 am

Yep and someone must of threw it away do u have the bits wurly corner?

89 UKDM BA4 4WS (resto job!) · Post by **wurlycorner** » Sun Feb 28, 2016 11:56 am

Nope, I don't think I do, sorry.
I think the steering column that I took out of the BB4, I sold complete.
I will check when I get a moment, but it won't be this weekend.

Supercharged 無限MUGEN BB1 Profile · Post by **nucleustylzlude** » Sun Feb 28, 2016 7:59 pm

Depends on what spec the lude has (or had). A few variables of what should have been there if it had:

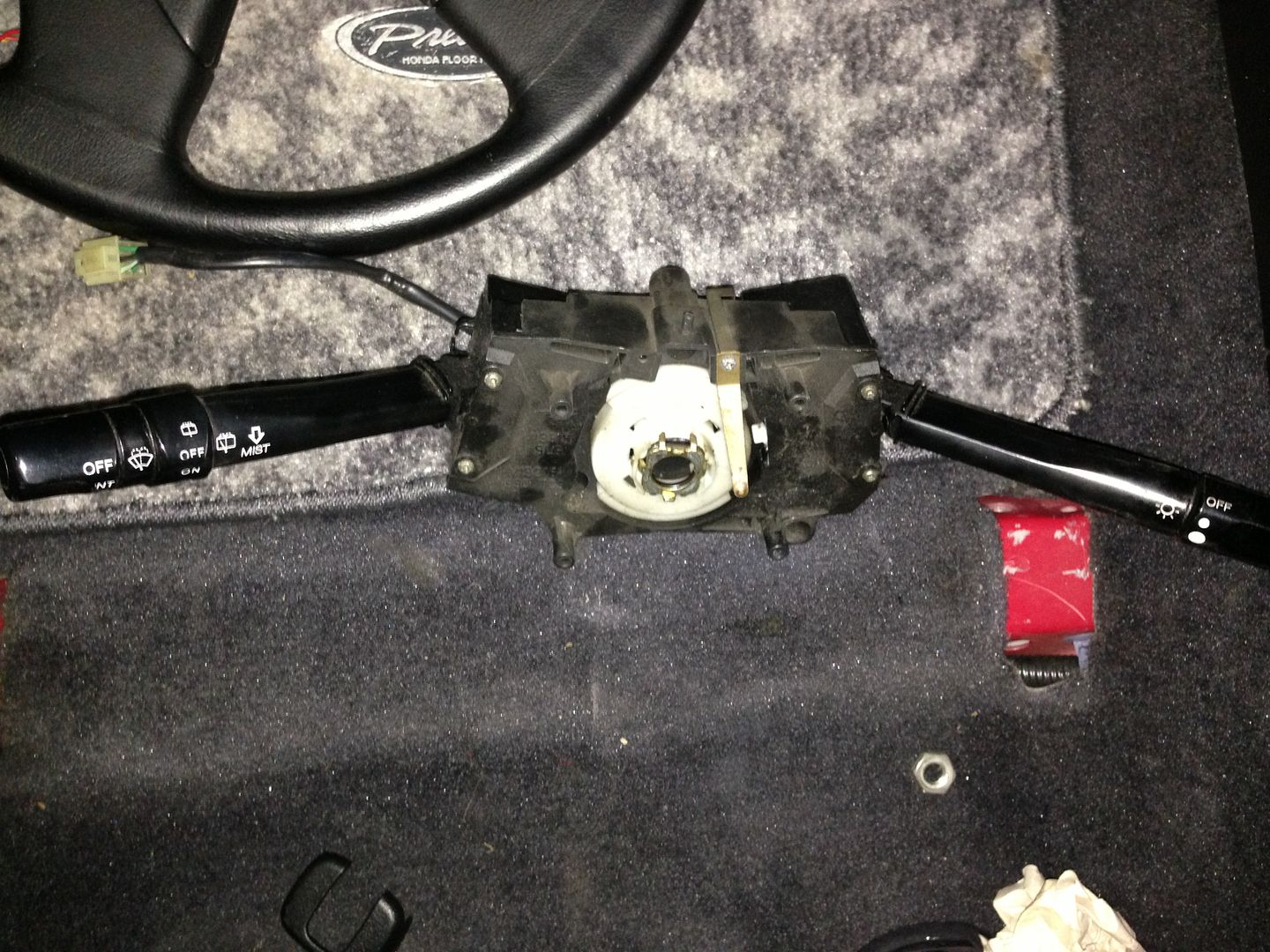

1) Just a horn with no cruise control or airbag - most basic with a raised sprung horn connection that contacts with a ring on the back of the steering wheel.

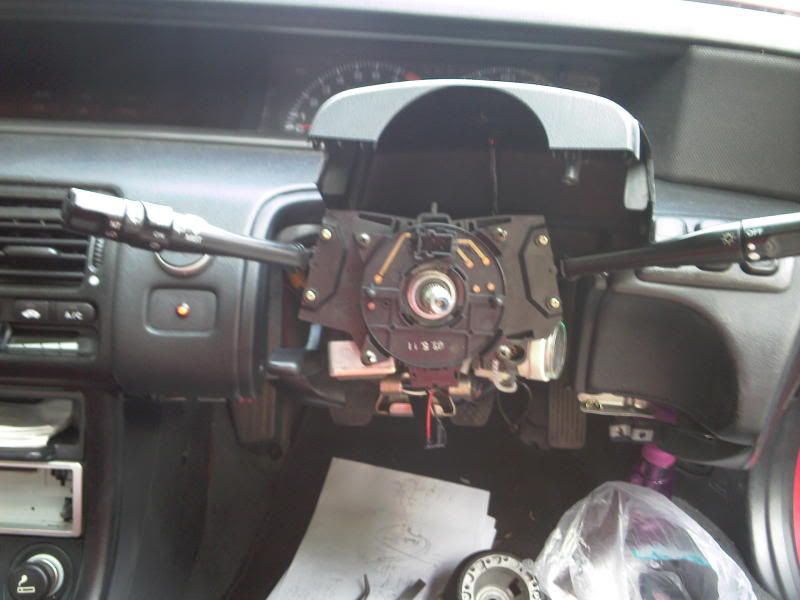

2) Horn and cruise control with no airbag - middle ground which has a bolt on plastics three point contact ring, 1 for the horn and 2 for the cruise control. I'll dig out a pic of my old one that Mart609 bought off me.

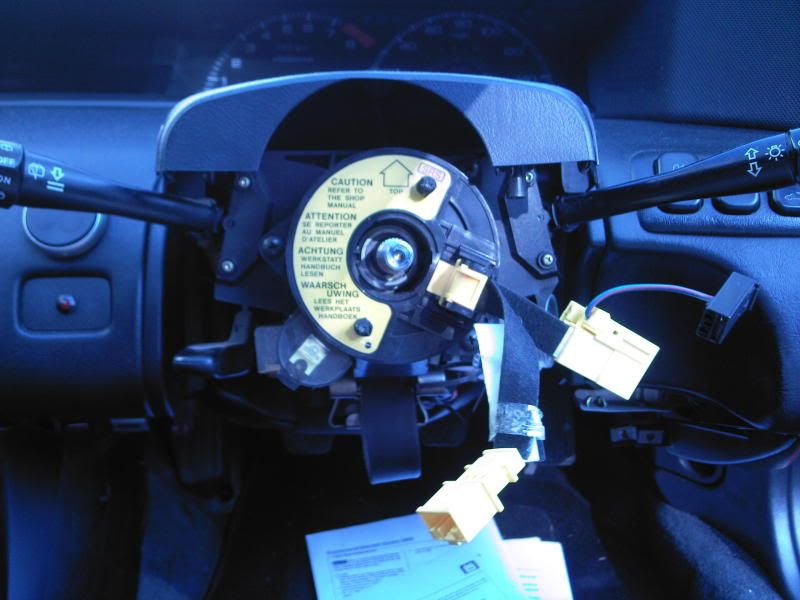

3) Horn, cruise control and an airbag - most complex as it is a more detailed cable reel - 'SRS cake reel' to carry a number of connections to the SRS loom (wrapped in grey tape under the dash).

So what spec is/was yours if you know?

I'll go and dig out some pics of each for ya.

Cheers,

Rob

89 UKDM BA4 4WS (resto job!) · Post by **wurlycorner** » Sun Feb 28, 2016 8:07 pm

@4thgenphil do you still have this fitted to yours? More weight you can rip out and pass onto someone that needs it?

preludemanh22 · Post by **preludemanh22** » Sun Feb 28, 2016 8:09 pm

And that be great your help is much appreciated people
