intake

LudeIOW · Post by **LudeIOW** » Fri Sep 06, 2013 12:27 am

so iv just recived my japspeed short ram intake

now this may be a very silly question but in the box with the pipe and filter were 2 small brackets one around 15cm x 1.5cm with 2 holes one end and 1 at tother and a small L shaped bracket wiith 1 hole in the longer side anyone know were these are MENT to go? if not il adjust them to support the intake anyway but when i looked i couldnt see any clear or ovbiouse places to fix them

sorry but i dont have pics atm will get some up asap

cheers

Fons[DutchGuy] · Post by **Fons[DutchGuy]** » Fri Sep 06, 2013 12:42 am

Hey,
Helped my mate with installing his, we had the same problem. eventually decided to modify one of the braces to support the intake. Not sure if this is what its meant for, but works out fine. I would wait for some other opinions, just to make sure.

LudeIOW · Post by **LudeIOW** » Fri Sep 06, 2013 12:43 am

cheers fons

mercutio · Post by **mercutio** » Fri Sep 06, 2013 8:02 am

that's what they are for to support the intake and stop it moving around

BMCC · Post by **BMCC** » Fri Sep 06, 2013 8:08 am

mercutio wrote:that's what they are for to support the intake and stop it moving around

+1

Where you brace the intake, i'm not sure but don't just leave it hanging off the TB!

Post by **vanzep** » Fri Sep 06, 2013 1:58 pm

the brackets are meant tp brace the intake near the filter - they should attach to somewhere on the front of the shock tower on the driver side - this is where the pipe takes a bend just before where the oem airbox sits.

89 UKDM BA4 4WS (resto job!) · Post by **wurlycorner** » Fri Sep 06, 2013 2:14 pm

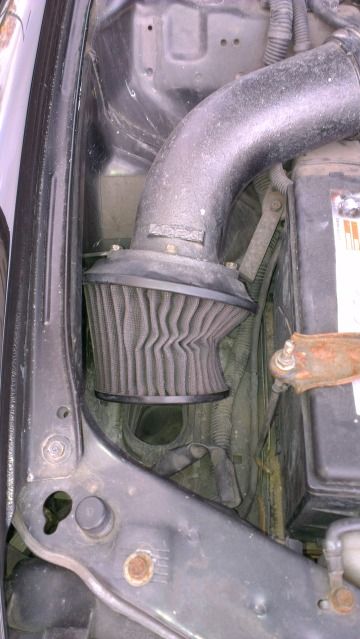

Should be like this;

(only not with the crushed filter lol )

There's 2 brackets on this one, one goes off to the inner wing (back left of the filter as shown in this pic), one goes back and down to near the bottom of the battery tray (back rhs of the filter as shown in thus pic).

The brackets in that pic come with the official apex'i induction kit and mount onto existing mounting holes on the shell.

Might not have both with whatever induction kit you're fitting, but should certainly have at least 1 like that.

LudeIOW · Post by **LudeIOW** » Fri Sep 06, 2013 8:23 pm

nice one cheers guys il have a proper look when i get a day off
