Re: Nathan's Road-Legal/Track BB4

Post by NafemanNathan » Fri Aug 08, 2014 12:59 pm

:lol: No worries Adam :)
Merlin wrote:Nice. Did you pick it up for less than £100?

Is there any other mods required to get it to run other than any machining and using K20 rods? Just H22 pistons?

Are the main journals much bigger than 50mm for the K24? Is there any issues with crank position sensors, crank pulleys or anything?
Not £100, but cheap enough :) Why do you ask, do you know of one for £100? :roll: :lol:

It'll be easier if I just let Shawn explain it to you ;-) ...

http://roskoracing.com/TechBlog/?p=149

So yeah, I'll need to source an A7 or A8 block for the 55mm journals.
Top
User avatar
Merlin
Moderator
Posts: 12393
Joined: Fri Aug 06, 2010 9:04 am
My Generation: 5G
PSN GamerTag: Merlinbadman
Location: Edinburgh
Has thanked: 68 times
Been thanked: 303 times

Post by Merlin » Fri Aug 08, 2014 1:05 pm

So it isn't milled down to 50mm :( bummer. Damn my H22a block!


It sounds exiting though. Good luck!
BA8......... BB4......... BB8.........The JDM Muscle Bus
Top
User avatar
wurlycorner
Ye are glad to be dead, RIGHT?
Posts: 21496
Joined: Sat May 19, 2012 3:33 pm
My Generation: 4G
Location: Chelmsford, Essex
Has thanked: 2484 times
Been thanked: 306 times

Post by wurlycorner » Fri Aug 08, 2014 1:13 pm

NafemanNathan wrote:Define cheap? :lol:

The crank needs an amount of machine work and conversion pieces and you need to run K20 rods, but yes, 99.0mm stroke compared to 90.7mm ;-) Will take it to a 2354cc with 13.33:1 with my Mahles 8)
:shock: :twisted: :twisted: :twisted: :twisted: :twisted: :twisted: :twisted: :twisted: :twisted:
Top
User avatar
NafemanNathan
LotM Winner
Posts: 20144
Joined: Sun Aug 08, 2010 9:37 pm
My Generation: 0G
Location: Yeovil, Somerset
Has thanked: 8 times
Been thanked: 124 times

Re: Nathan's Road-Legal/Track BB4

Post by NafemanNathan » Fri Aug 08, 2014 1:13 pm

Merlin wrote:So it isn't milled down to 50mm :( bummer. Damn my H22a block!


It sounds exiting though. Good luck!
:lol:


Cheers bud :)
Top
User avatar
wurlycorner
Ye are glad to be dead, RIGHT?
Posts: 21496
Joined: Sat May 19, 2012 3:33 pm
My Generation: 4G
Location: Chelmsford, Essex
Has thanked: 2484 times
Been thanked: 306 times

Post by wurlycorner » Fri Aug 08, 2014 1:14 pm

NafemanNathan wrote: So yeah, I'll need to source an A7 block for the 55mm journals.
You already have one of those... :hurr: :lol:
Top
User avatar
NafemanNathan
LotM Winner
Posts: 20144
Joined: Sun Aug 08, 2010 9:37 pm
My Generation: 0G
Location: Yeovil, Somerset
Has thanked: 8 times
Been thanked: 124 times

Re: Nathan's Road-Legal/Track BB4

Post by NafemanNathan » Fri Aug 08, 2014 1:28 pm

wurlycorner wrote:
NafemanNathan wrote: So yeah, I'll need to source an A7 block for the 55mm journals.
You already have one of those... :hurr: :lol:
That one's staying as is ;)
Top
User avatar
wurlycorner
Ye are glad to be dead, RIGHT?
Posts: 21496
Joined: Sat May 19, 2012 3:33 pm
My Generation: 4G
Location: Chelmsford, Essex
Has thanked: 2484 times
Been thanked: 306 times

Post by wurlycorner » Fri Aug 08, 2014 3:23 pm

:( Spoil sport... ;)
Top
User avatar
RattyMcClelland
Moderator
Posts: 9208
Joined: Wed Aug 04, 2010 10:02 pm
My Generation: 5G
PSN GamerTag: RattyMcClelland
Location: Leicestershire
Been thanked: 203 times

Post by RattyMcClelland » Fri Aug 08, 2014 6:41 pm

Owwwwww.......2.4ltr VTEC. The torque will be immense along with the wide rev range.

Your not giving me ideas to go with my supercharger. Nope. Definately not.
Top
User avatar
honda-hardy
Club Cartographer
Posts: 6268
Joined: Sat Jan 28, 2012 7:35 pm
My Generation: 5G
Location: chippenham
Been thanked: 1 time

Post by honda-hardy » Fri Aug 08, 2014 8:48 pm

:lol:
Top
User avatar
NafemanNathan
LotM Winner
Posts: 20144
Joined: Sun Aug 08, 2010 9:37 pm
My Generation: 0G
Location: Yeovil, Somerset
Has thanked: 8 times
Been thanked: 124 times

More Bits Including K-Sport Treats

Post by NafemanNathan » Sun Aug 17, 2014 10:07 pm

A few more goodies collected. A few boring, so I'll save the best for last ;)

I picked up a few brand new bits from a guy splitting his H22 Civic project that never amounted to anything.

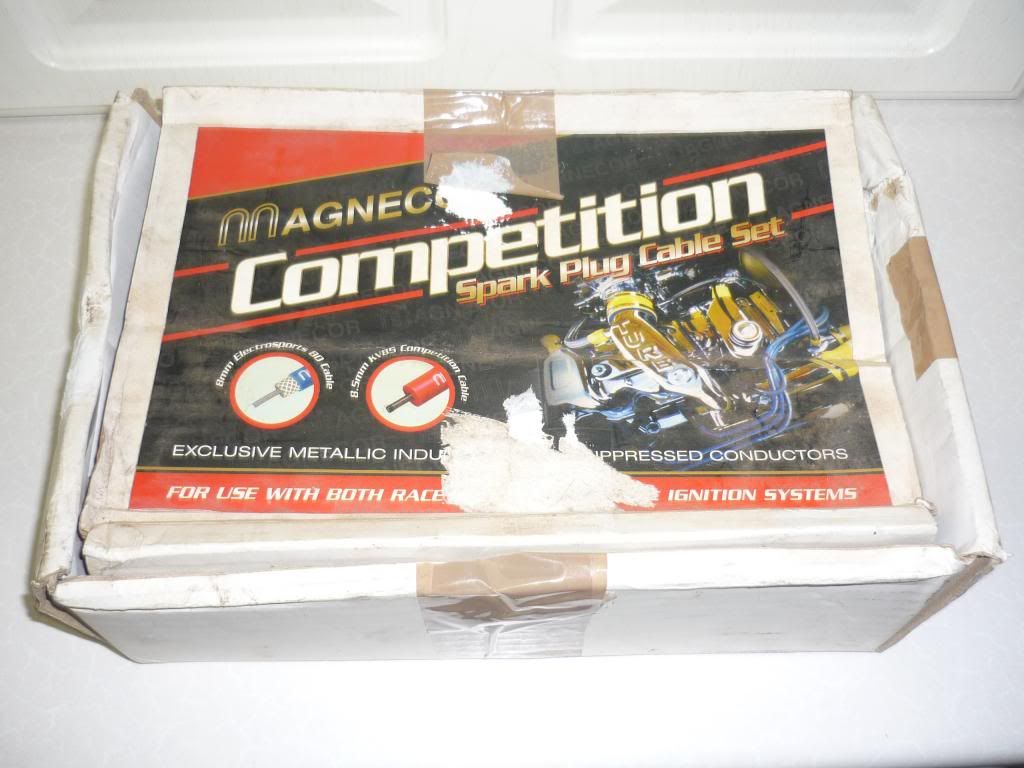

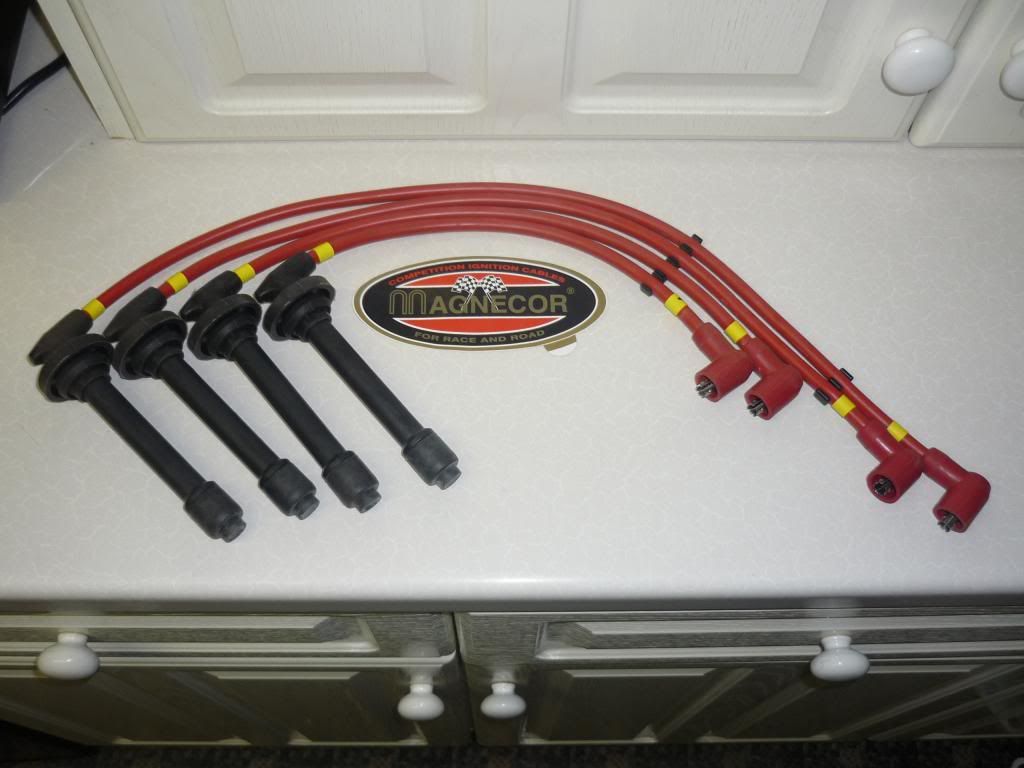

Magnecor KV85 Leads...

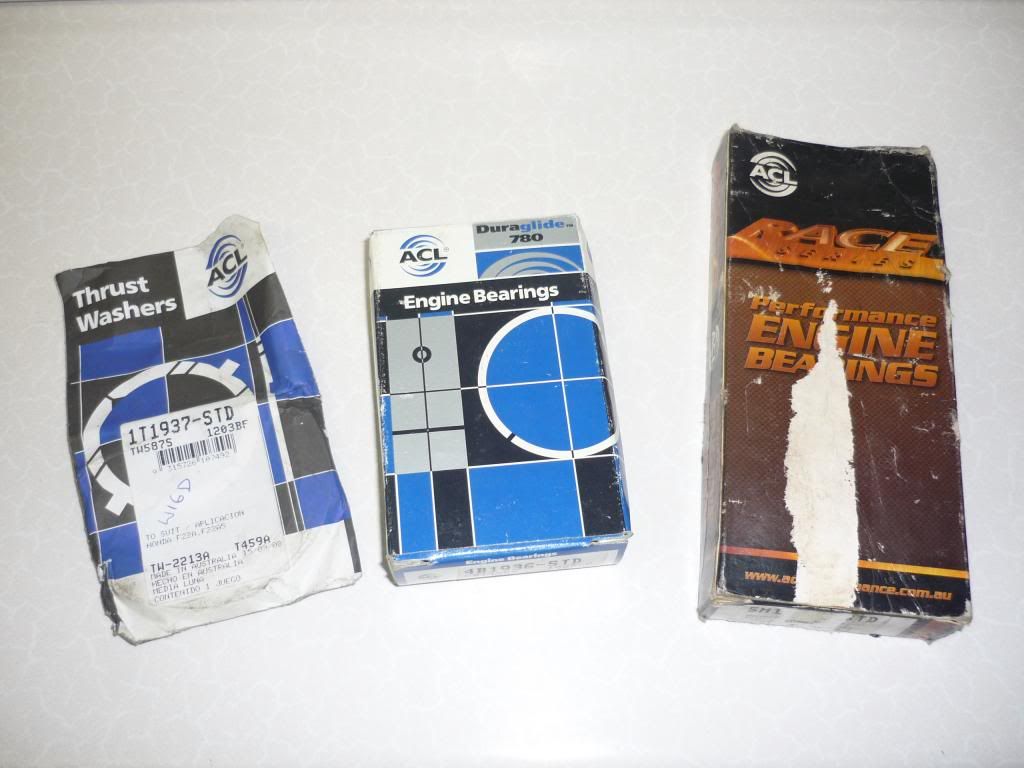

ACL Crank Bearings... Although suited to a 50mm crank, so now the mains are rendered redundant with the K24 crank...

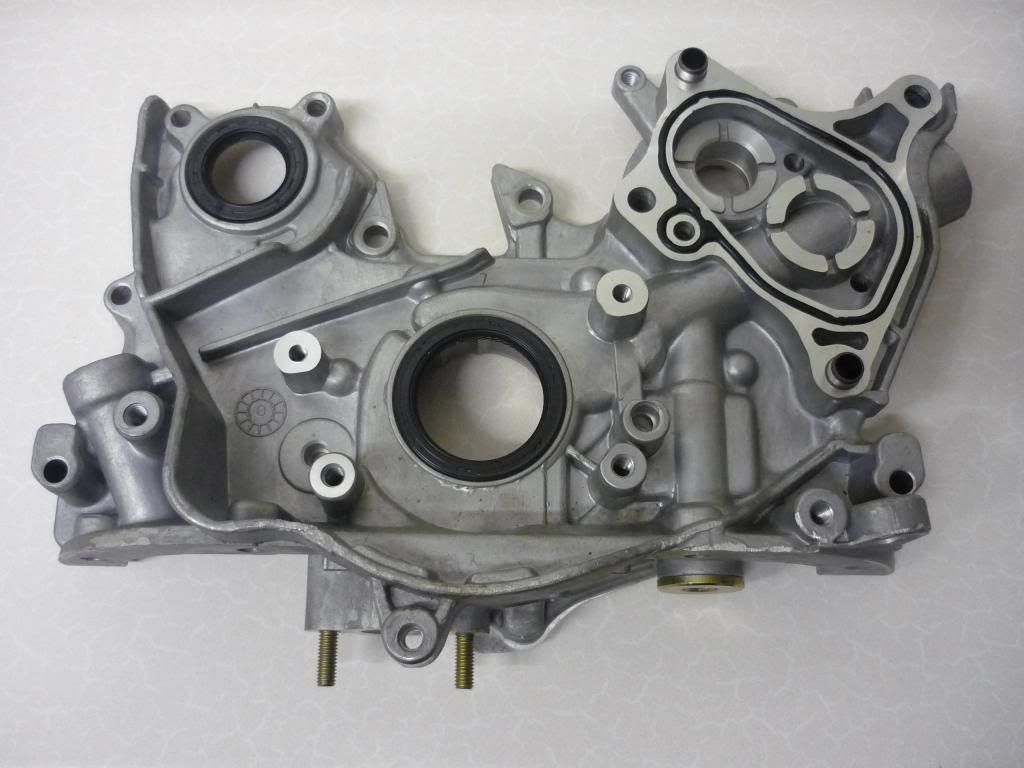

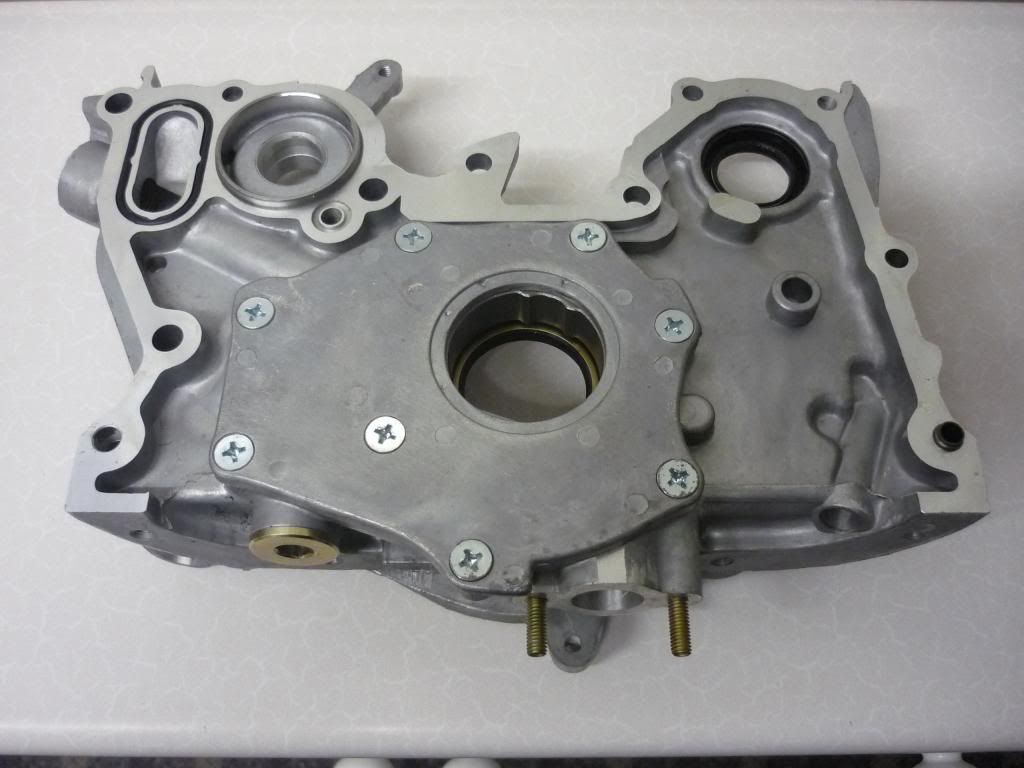

And after what happened with my silver lude... A fresh new Oil Pump ;-) ...



And then just yesterday I finally took the 4 hour round trip to meet the smashing fella that is @ludey and picked up several boxes containing this lot 8) ...

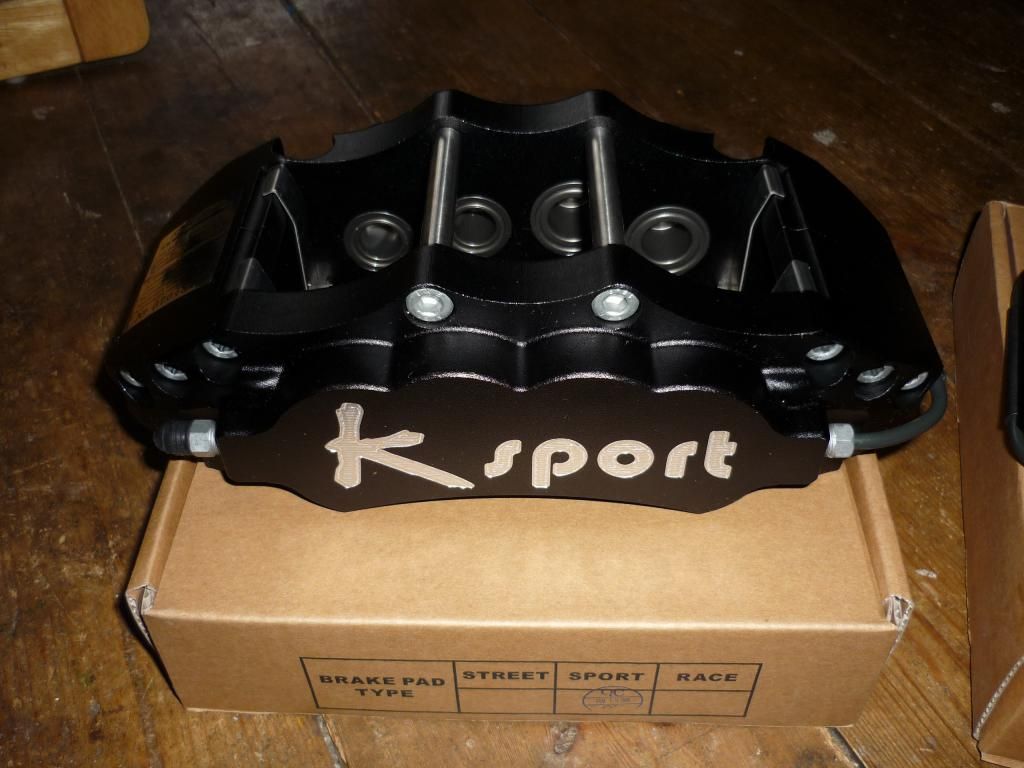

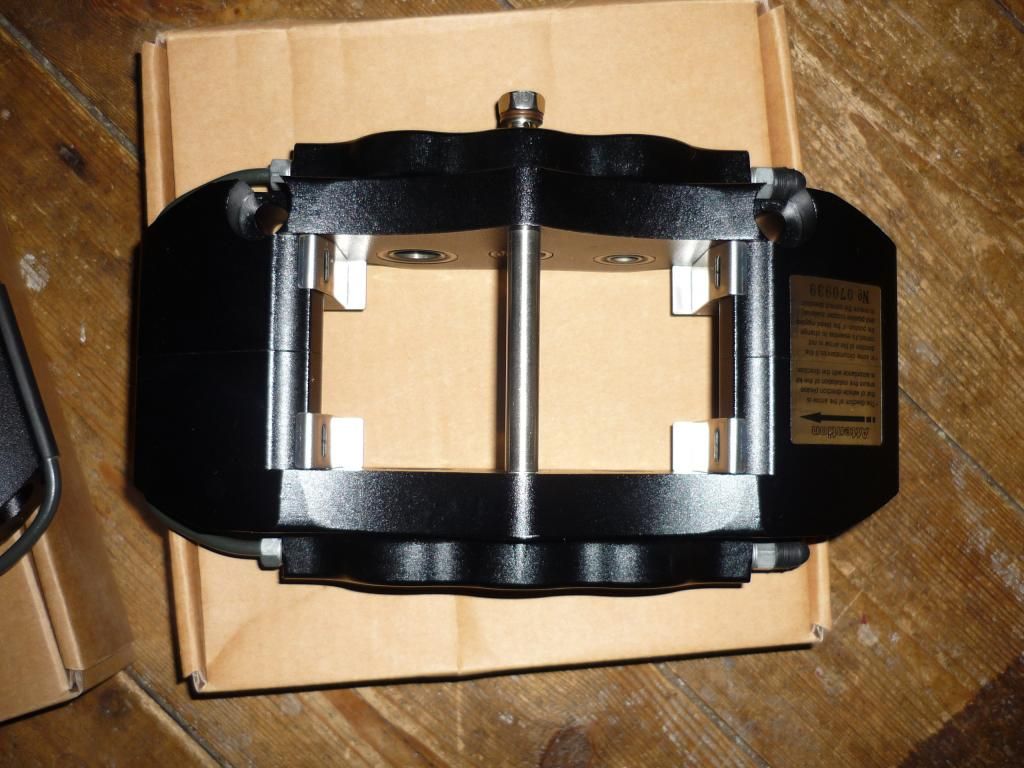

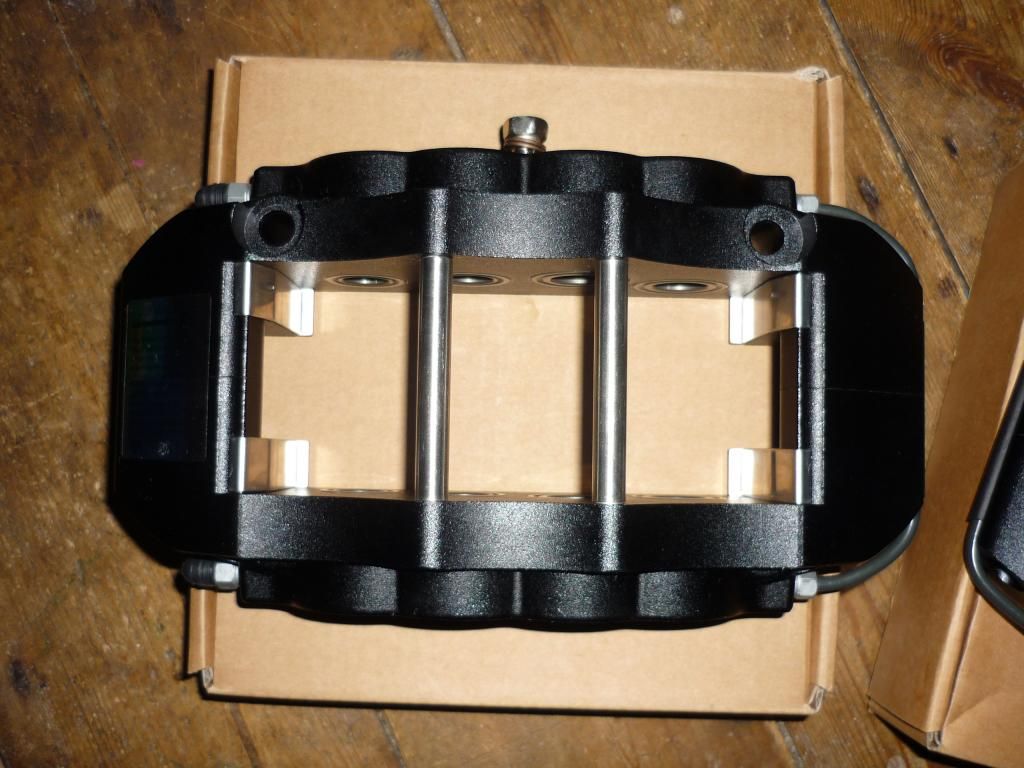

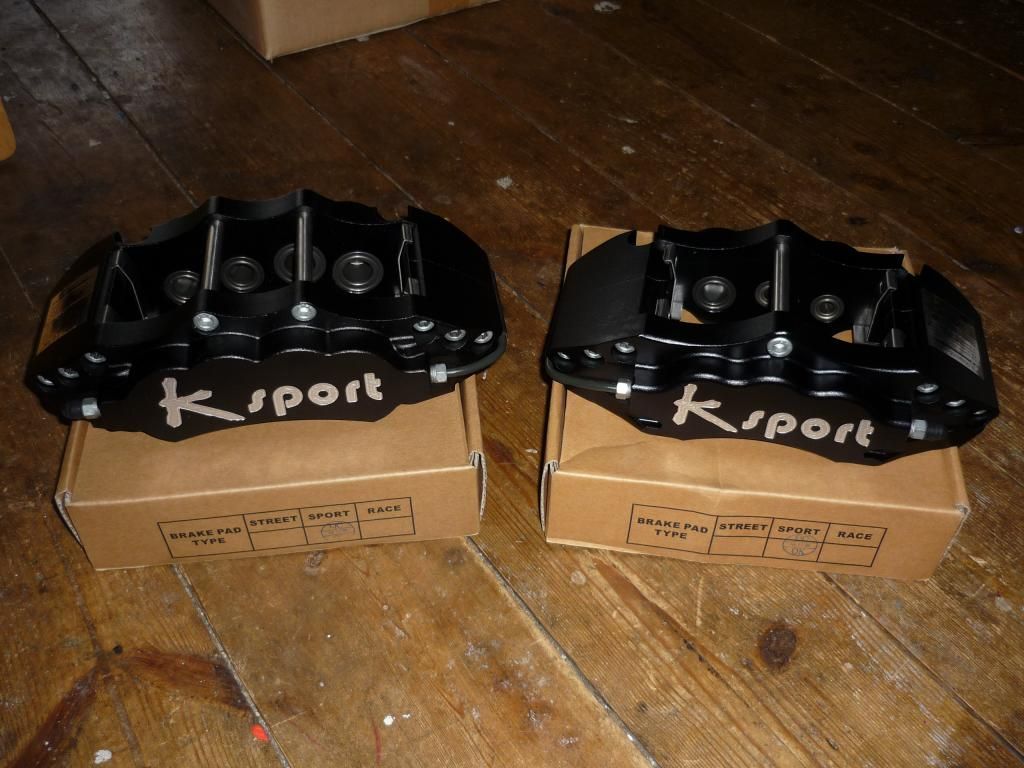

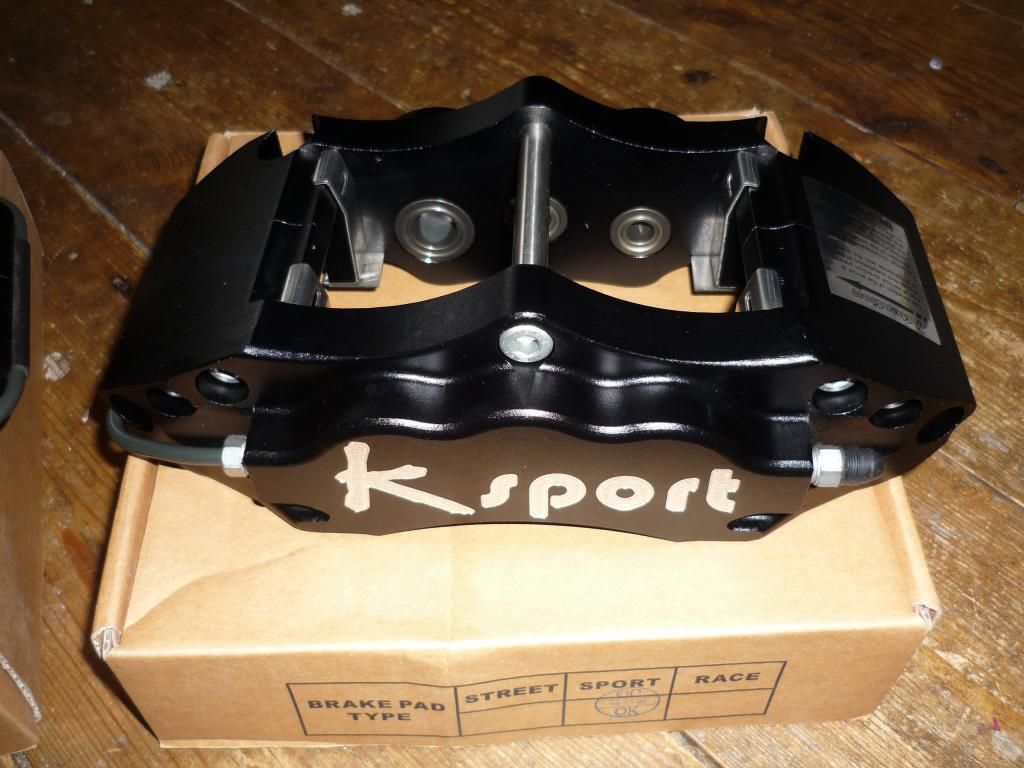

8 pot fronts 8) ...

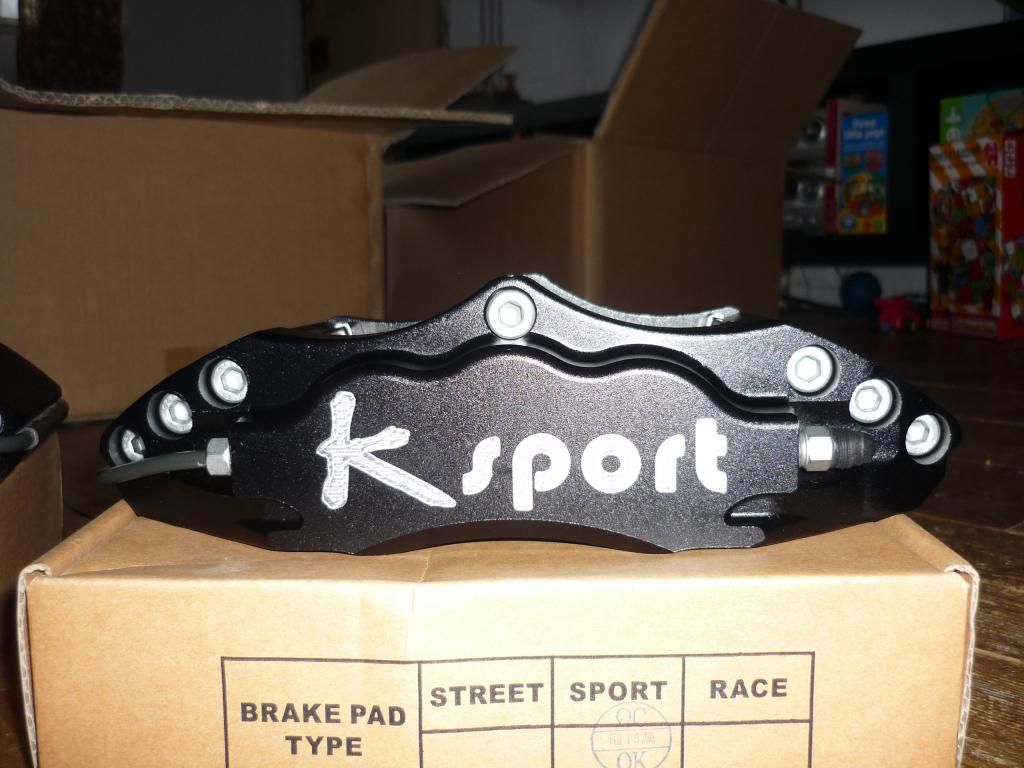

6 pot rears 8) ...

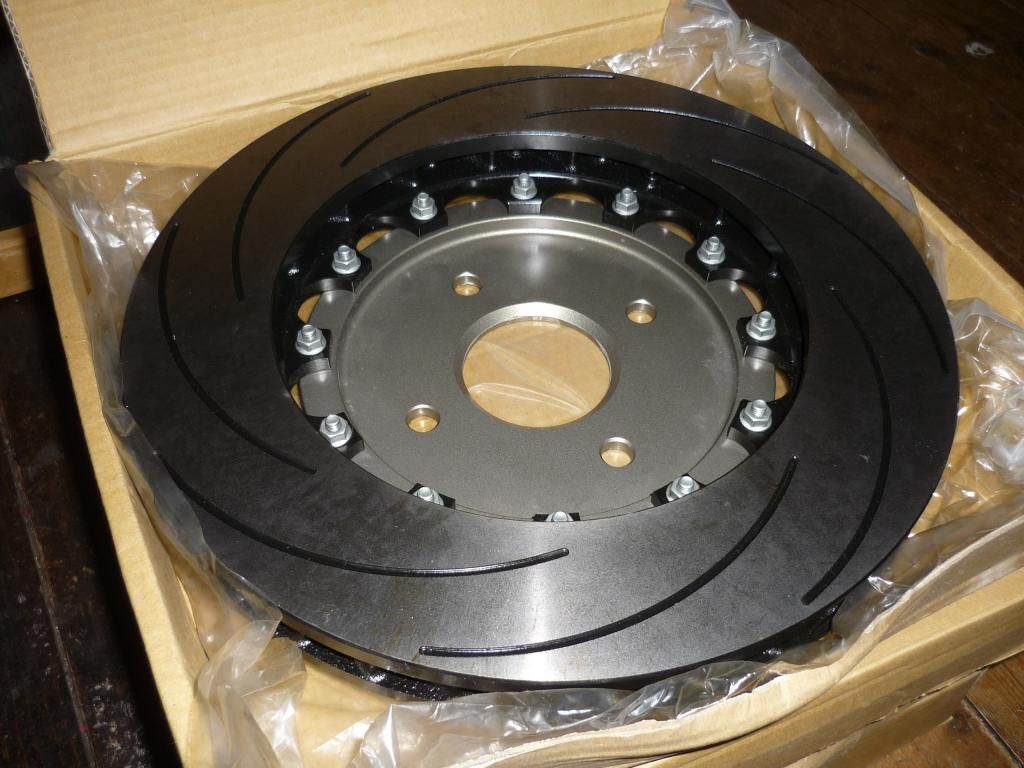

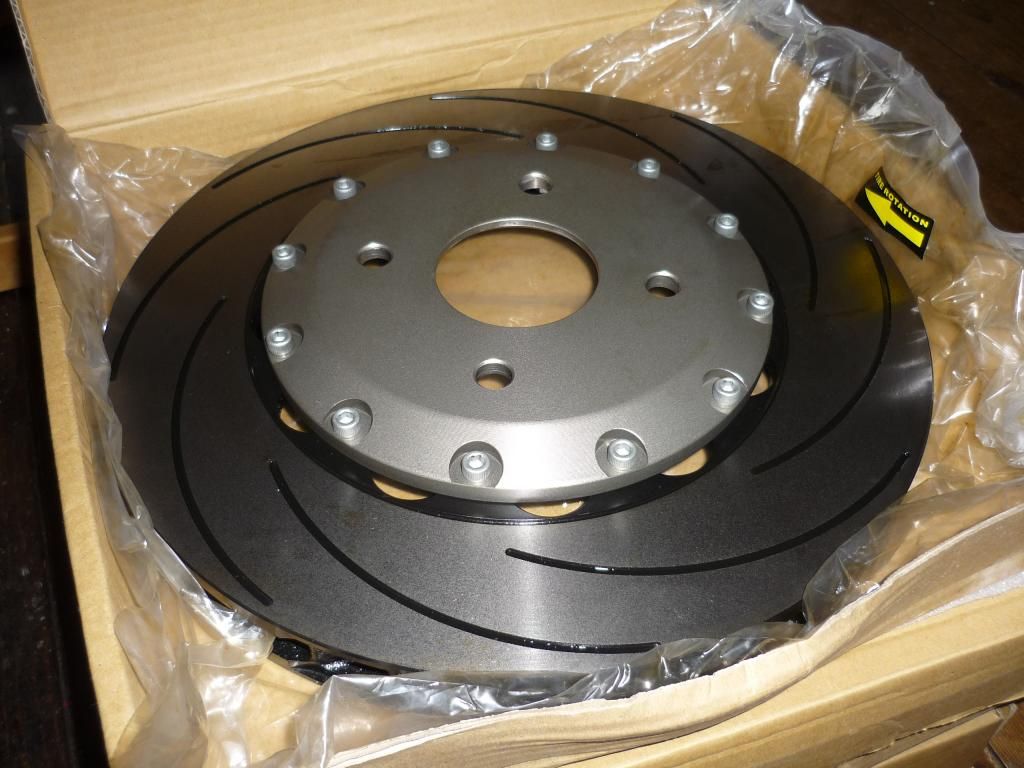

330mm discs front and back 8) ...

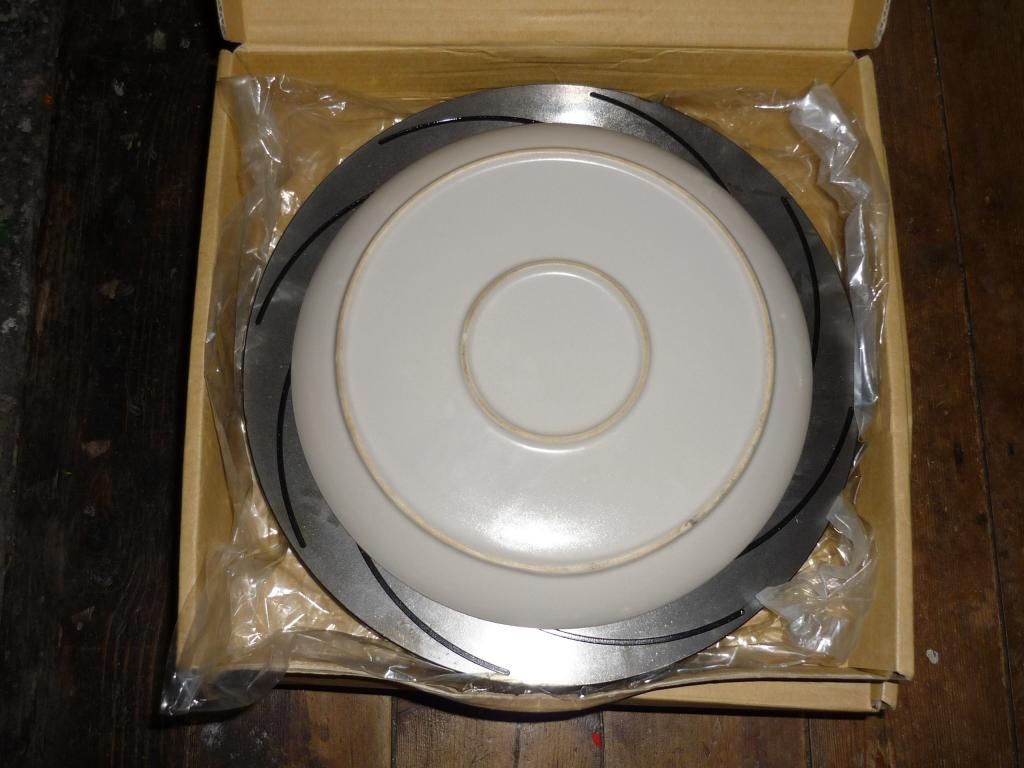

Just for a size comparison this plate is coincidentally the same diameter as standard 282mm front discs...


And they're rather substantial as well...


I'll just need to get them re-drilled for 5 bolt, which is no biggy.

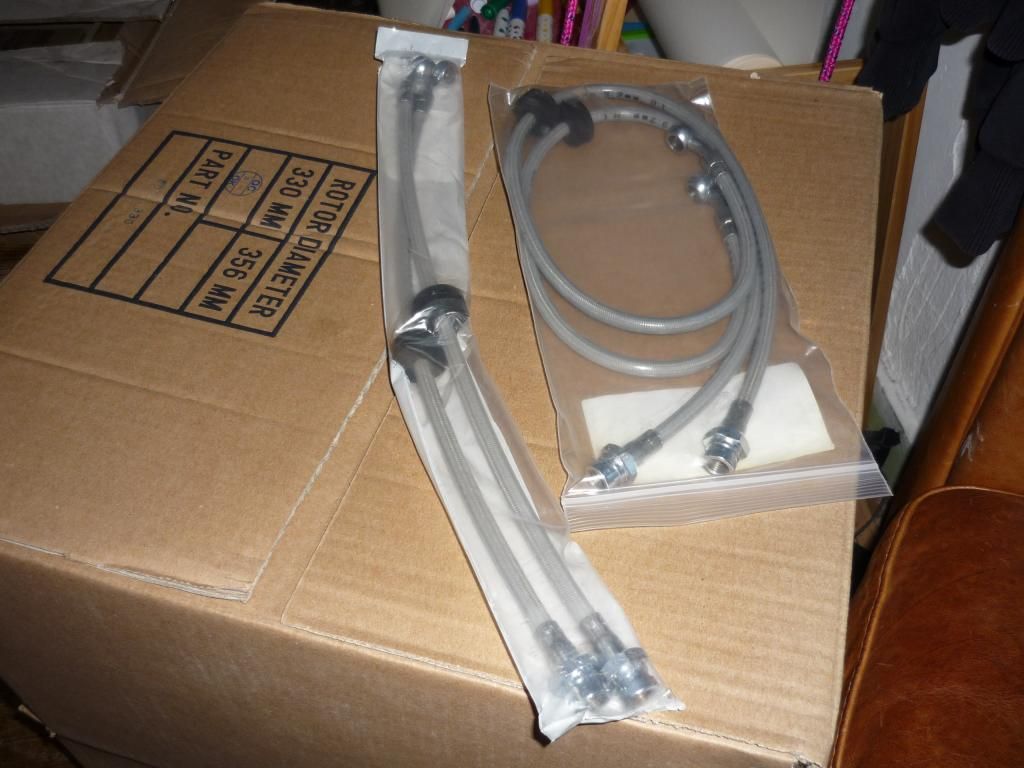

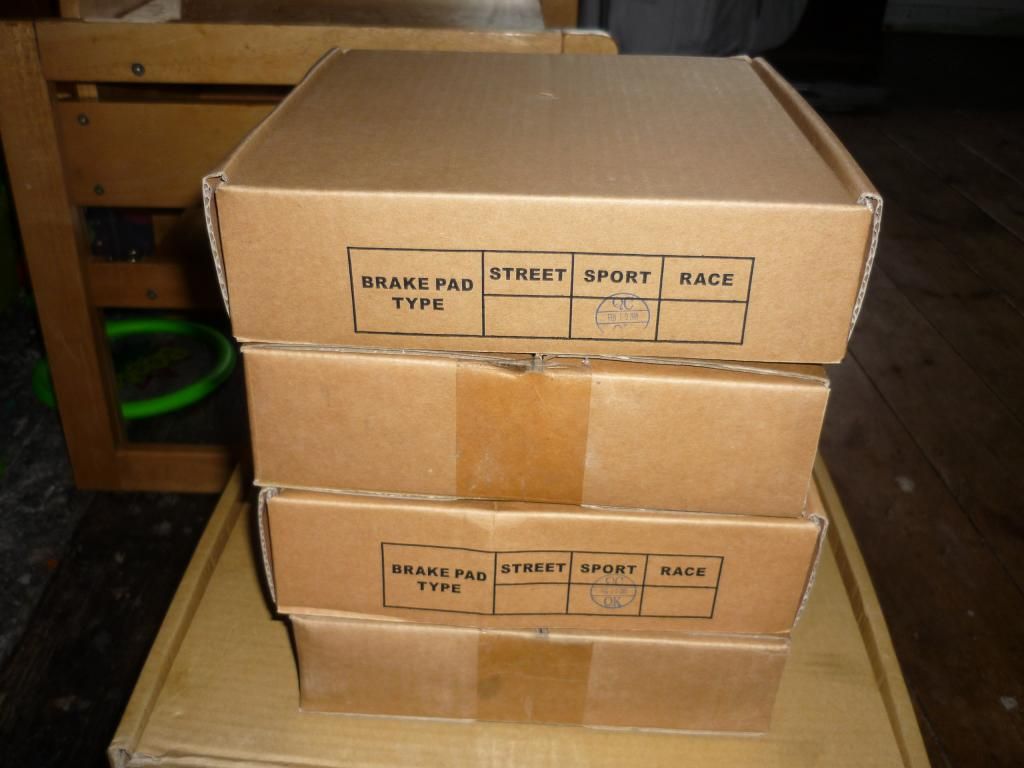

Then they came with braided hoses, Sport spec pads and obviously fitting kit...



;-) Cheer Stephen. Great to meet you :) I've been thinking more about that crank of yours since I left :lol: If I can't get just K24 crank conversion parts I might be back in touch :lol:

With the rears not having a mechanical cable-operated function, the calipers alone would be an MOT fail, so I've had these in my watch list for the past 6 months...

http://www.ebay.co.uk/itm/120648445366? ... 1423.l2649

As they stand they're not wide enough to cope with the disc, but as they're only 1 pots and the calipers are 2 piece I'll be able to split them and fit a spacer. Then I'll obviously have to make up a bracket to fit them.
